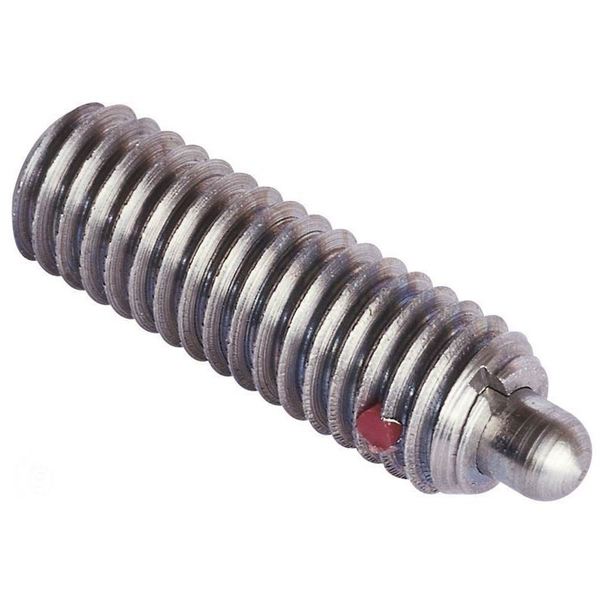

TE-CO 69501X SPRING PLUNGERS - PIN STYLE - SLOTTED SS BODY
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: 69501X
IMS Product Code: 1922580
Packaging: Sold Individually
Description:
TE-CO 69501X Spring Plungers - Pin Style - Slotted SS Body - SS Nose
Specifications:
- Finish: Black Oxide
- Nose Material: Steel
- Initial End Force: 6.0 N
- Final End Force: 20.0 N

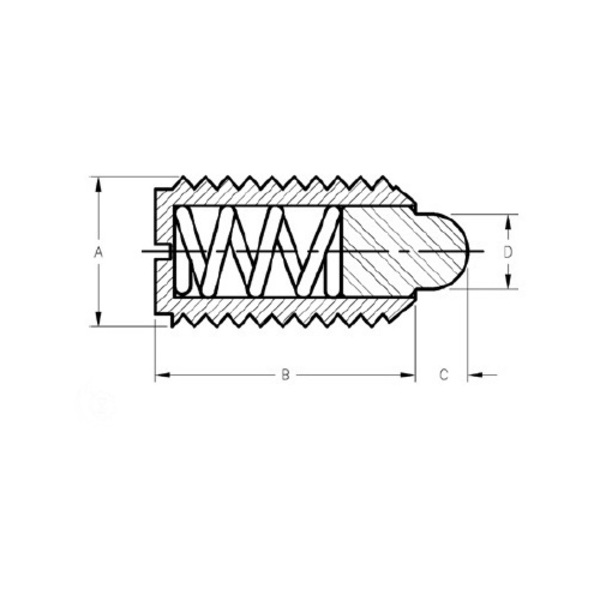

- Thread Size (A): M4
- Body Length (B): 9.00 mm
- Projection Size (C): 1.50 mm
- Nose Diameter (D): 1.80 mm
- Body/Plunger Material: 300 series stainless steel
- Locking Element: No
- Type: Spring Plunger
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
