TE-CO 64008X BALL PLUNGERS METRIC - SS BODY, SS BALL
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: 64008X
IMS Product Code: 1922585
Packaging: Sold Individually
Description:

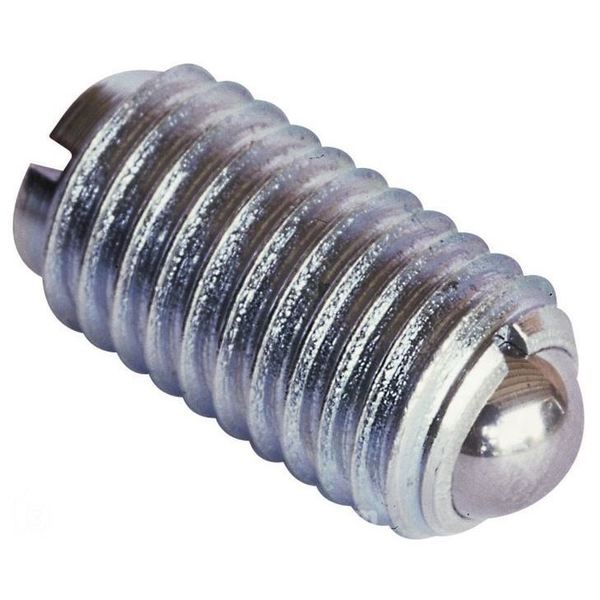

TE-CO 64008X Ball Plungers Metric - SS Body, SS Ball
- Smallest and lightest spring loaded device
- Side-load tolerant
- Controlled end forces
- Screwdriver installation
- Many sizes conform to TCMAI standards
Specifications:
- Finish: Black
- Initial End Force: 4.45 lb
- Initial End Force: 20.0 N
- Final End Force: 7.80 lb
- Final End Force: 35.00 N

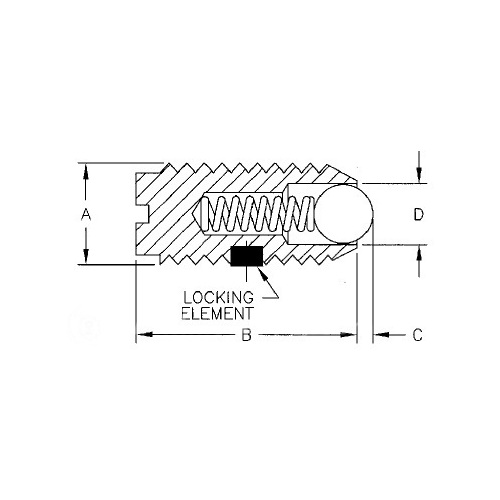

- Thread Size (A): M10 x 1.50
- Body Length (B): 0.748 in19.00 mm
- Projection Size (C): 0.079 in2.00 mm
- Ball Diameter (D): 0.236 in6.00 mm
- Body Material: 303 Stainless Steel
- Ball Material: 440 Stainless Steel
- Locking Element Present: No
- Type: Ball Plunger
- Thread Pitch: 1.50 mm
- Thread Type: Straight Metric
- Lock Type: No
- Plunger Material: Stainless Steel
- Thread Lock Element: 0
- VLIER #: SBM10
- End Force: Standard
- Body Angle: 0 º
