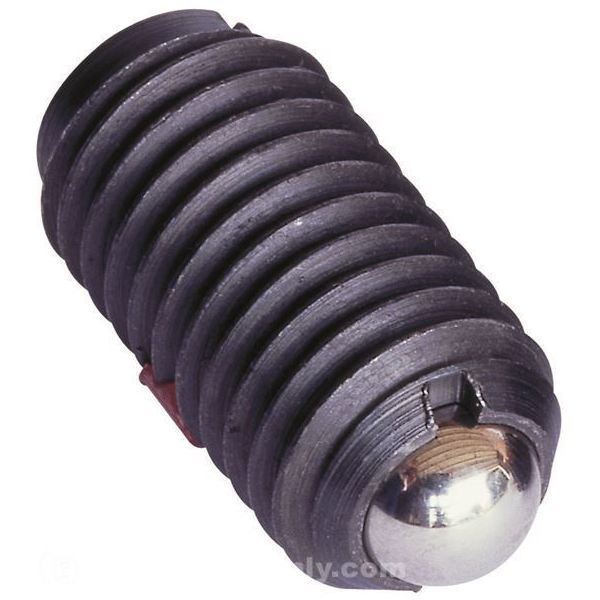

TE-CO 63904X BALL PLUNGERS METRIC - STEEL BODY, SS BALL
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: 63904X
IMS Product Code: 1922605
Packaging: Sold Individually
Description:
TE-CO 63904X Ball Plungers Metric - Steel Body, SS Ball
- Smallest and lightest spring loaded device
- Side-load tolerant
- Controlled end forces
- Screwdriver installation
- Many sizes conform to TCMAI standards
Specifications:
- Finish: Gold
- Initial End Force: 6.25 lb
- Initial End Force: 28.0 N
- Final End Force: 8.95 lb
- Final End Force: 40.0 N

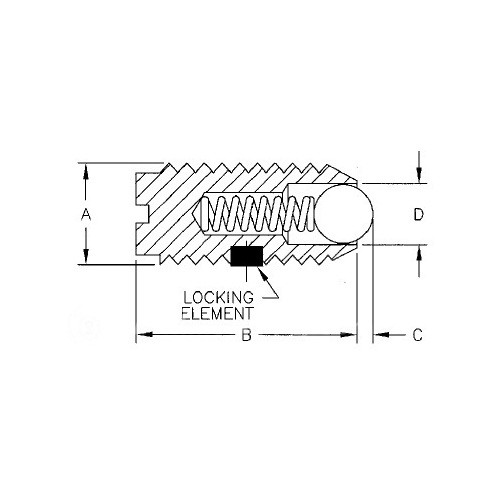

- Thread Size (A): M6 x 1.00
- Body Length (B): 0.551 in14.00 mm
- Projection Size (C): 0.039 in1.00 mm
- Ball Diameter (D): 0.138 in3.50 mm
- Body Material: 12L14 Steel
- Ball Material: 440 Stainless Steel
- Locking Element Present: No
- Type: Ball Plunger
- Thread Pitch: 1.00 mm
- Thread Type: Straight Metric
- Lock Type: No
- Plunger Material: Stainless Steel
- Thread Lock Element: 0
- VLIER #: BMH6A
- End Force: Heavy
- Body Angle: 0 º
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
