TE-CO 53825X BALL PLUNGERS IMPERIAL - STEEL BODY, NYLON BALL
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: 53825X
IMS Product Code: 1922706
Packaging: Sold Individually
Description:

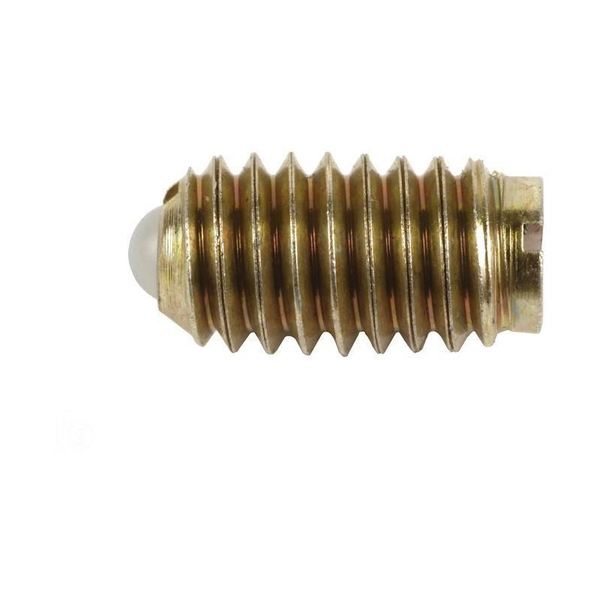

TE-CO 53825X Ball Plungers Imperial - Steel Body, Nylon Ball
- Smallest and lightest spring loaded device
- Side-load tolerant
- Controlled end forces
- Screwdriver installation
- Many sizes conform to TCMAI standards
Specifications:
- Finish: Black
- Initial End Force: 0.50 lb
- Final End Force: 1.25 lb
- Thread Size (A): 8-32
- Body Length (B): 0.344 in
- Projection Size (C): 0.025 in
- Ball Diameter (D): 0.093 in
- Body Material: 12L14 Steel
- Ball Material: Nylon
- Locking Element Present: No
- Type: Ball Plunger
- Weight: 0.04 lb
- Thread Type: UNC
- Threads per Inch: 32
- Lock Type: No
- Plunger Material: Nylon/Plastic
- Thread Lock Element: 0
- End Force: Standard
- Body Angle: 0 º
