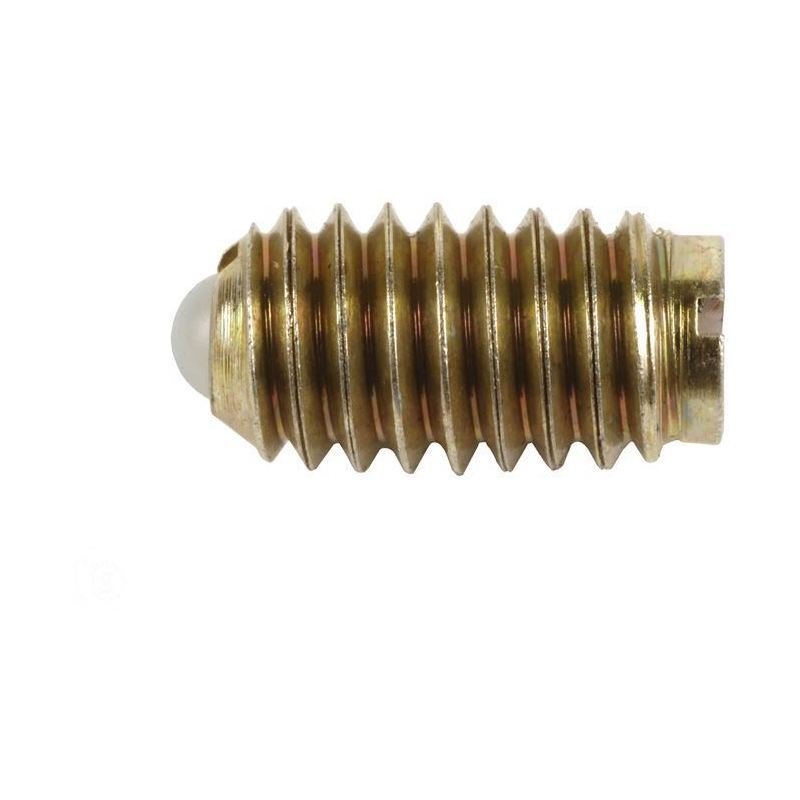

TE-CO 53809X BALL PLUNGERS IMPERIAL - STEEL BODY, NYLON BALL
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: 53809X
IMS Product Code: 1922741
Packaging: Sold Individually
Description:
TE-CO 53809X Ball Plungers Imperial - Steel Body, Nylon Ball
- Smallest and lightest spring loaded device
- Side-load tolerant
- Controlled end forces
- Screwdriver installation
- Many sizes conform to TCMAI standards
Specifications:
- Finish: Gold
- Initial End Force: 6.00 lb
- Final End Force: 17.00 lb

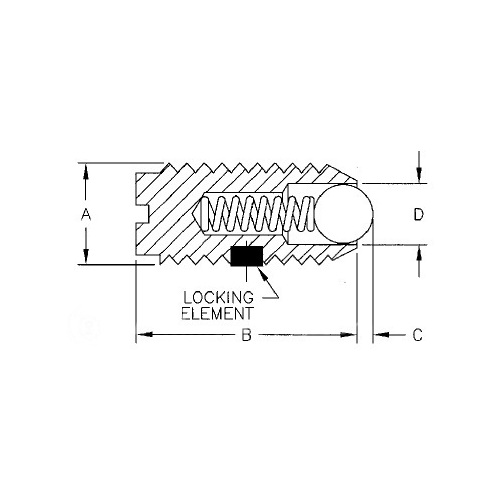

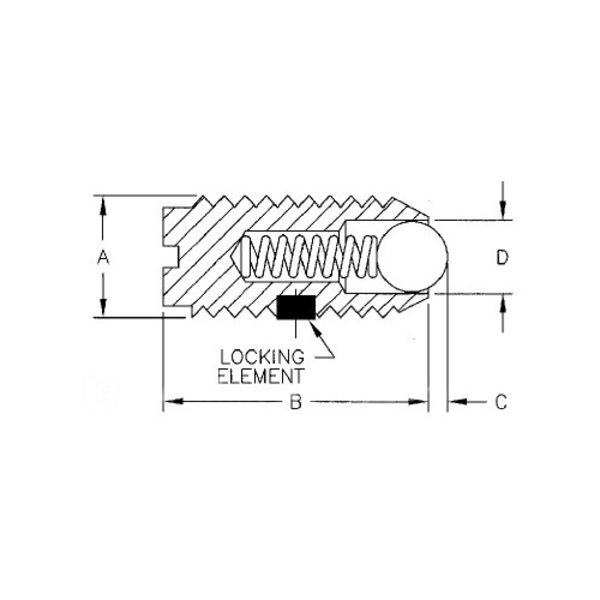

- Thread Size (A): 5/16-18
- Body Length (B): 0.578 in
- Projection Size (C): 0.040 in
- Ball Diameter (D): 0.156 in
- Body Material: 12L14 Steel
- Ball Material: Nylon
- Locking Element Present: No
- Type: Ball Plunger
- Weight: 0.70 lb
- Thread Type: UNC
- Threads per Inch: 18
- Lock Type: No
- Plunger Material: Nylon/Plastic
- Thread Lock Element: 0
- End Force: Heavy
- Body Angle: 0 °
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
