TE-CO 53623 PRESS FIT BALL PLUNGER
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: 53623
IMS Product Code: 1923461
Packaging: Sold Individually
Description:

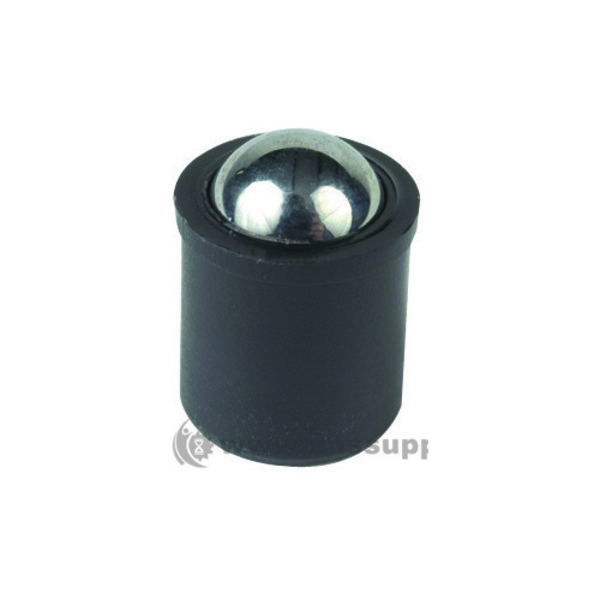

TE-CO 53623 Press Fit Ball Plunger - No Flange - Plastic Body - SS Ball
- Black thermoplastic body
- Ball available in stainless steel
- Small and lightweight
Specifications:
- Initial End Force: 6.0 N
- Final End Force: 12.0 N

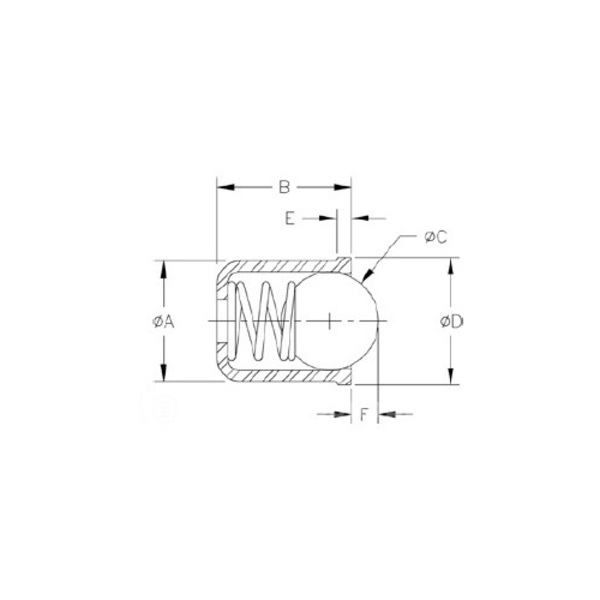

- Body Diameter (A): 8.00 mm
- Body Length (B): 9.00 mm
- Ball Diameter (C): 6.50 mm
- Projection Size (F): 1.80 mm
- Collar Diameter (D): 8.50 mm
- Collar Width (E): 1.00 mm
- Body Material: Plastic
- Ball Material: Stainless Steel
- Type: Press Fit Ball Plunger
- Plunger Material: Stainless Steel
- Thread Lock Element: 0
- VLIER #: PFP25
- Thread Length: 0 mm
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
