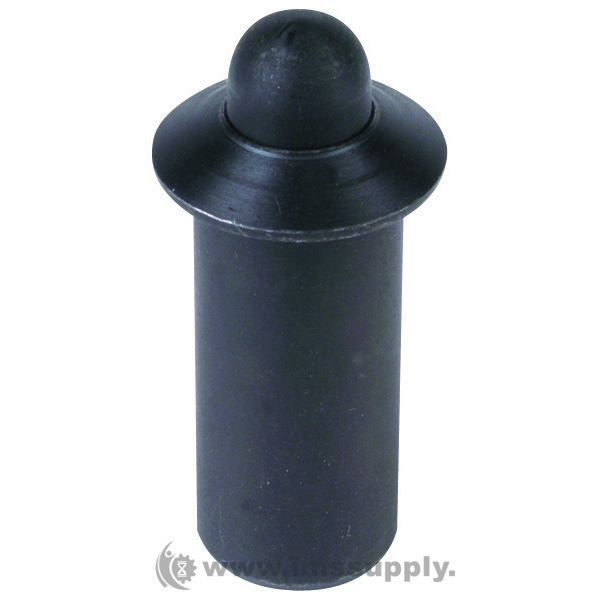

TE-CO 53603 PRESS FIT SPRING PLUNGERS
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: 53603
IMS Product Code: 1924297
Packaging: Sold Individually
Description:
TE-CO 53603 Press Fit Spring Plungers
- Material: Steel Body: 12L14 Steel, Stainless Steel Body: 303 Stainless Steel, Steel Plunger: 12L14 Steel, Stainless Steel Plunger: 303 Stainless Steel
- Ideal for installation in softer materials such as aluminum, wood, or plastic
- Withstands high temperatures
- No thread adjustment
- Longer travel
Specifications:
- Initial End Force: 2.50 lb
- Final End Force: 7.00 lb

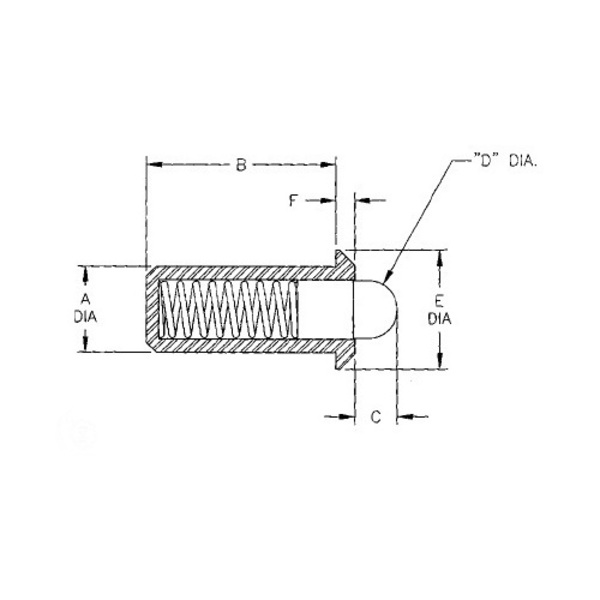

- Body Diameter (A): 0.375 in
- Body Length (B): 0.788 in
- Projection Size (C): 0.187 in
- Nose Diameter (D): 0.234 in
- Collar Diameter (E): 0.500 in
- Collar Width (F): 0.096 in
- Body Material: 12L14 Steel
- Finish: Black Oxide
- Nose Material: 12L14 Steel
- Weight: 0.02 lb
- Type: Press Fit Spring Plunger
- Plunger Material: Steel
- Thread Lock Element: No
- VLIER #: PFP58
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
