TE-CO 52810X BALL PLUNGERS IMPERIAL - STEEL BODY, SS BALL
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: 52810X
IMS Product Code: 1922851
Packaging: Sold Individually
Description:

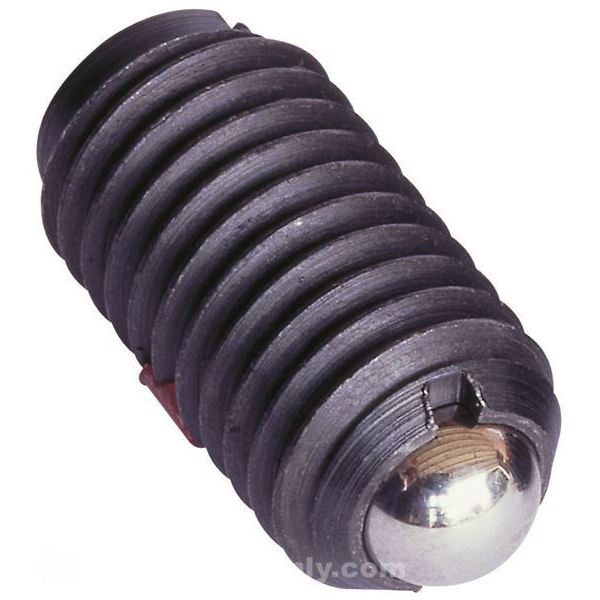

TE-CO 52810X Ball Plungers Imperial - Steel Body, SS Ball
- Smallest and lightest spring loaded device
- Side-load tolerant
- Controlled end forces
- Screwdriver installation
- Many sizes conform to TCMAI standards
Specifications:
- Finish: Zinc
- Initial End Force: 2.50 lb
- Final End Force: 5.00 lb
- Thread Size (A): 3/8-16
- Body Length (B): 0.625 in
- Projection Size (C): 0.048 in
- Ball Diameter (D): 0.187 in
- Body Material: 12L14 Steel
- Ball Material: 440 Stainless Steel
- Locking Element Present: No
- Type: Ball Plunger
- Weight: 1.20 lb
- Thread Type: UN
- Threads per Inch: 16
- Lock Type: No
- Plunger Material: Stainless Steel
- Thread Lock Element: 0
- End Force: Light
- Body Angle: 0 °
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
