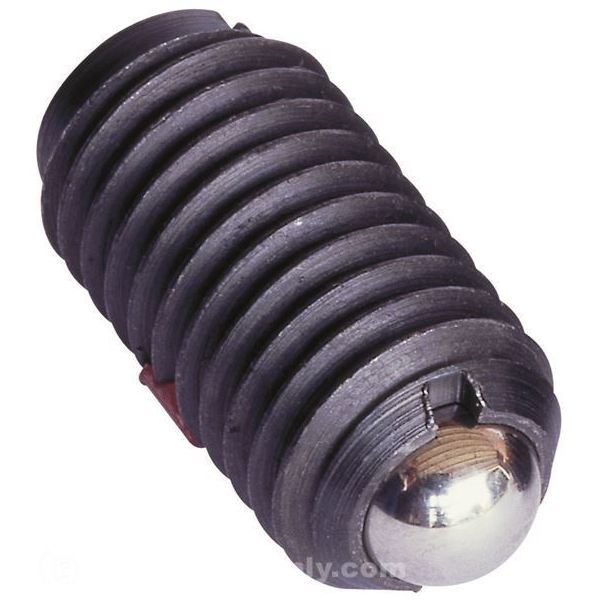

TE-CO 52806X BALL PLUNGERS IMPERIAL - STEEL BODY, SS BALL
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: 52806X
IMS Product Code: 1922859
Packaging: Sold Individually
Description:
TE-CO 52806X Ball Plungers Imperial - Steel Body, SS Ball
- Smallest and lightest spring loaded device
- Side-load tolerant
- Controlled end forces
- Screwdriver installation
- Many sizes conform to TCMAI standards
Specifications:
- Finish: Gold
- Initial End Force: 4.0 lb
- Final End Force: 12.00 lb

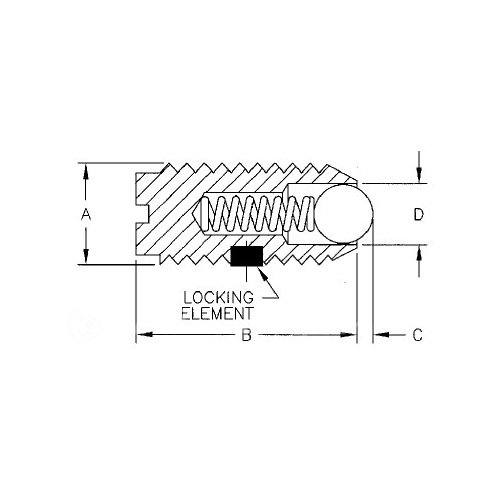

- Thread Size (A): 1/4-20
- Body Length (B): 0.531 in
- Projection Size (C): 0.035 in
- Ball Diameter (D): 0.125 in
- Body Material: 12L14 Steel
- Ball Material: 440 Stainless Steel
- Locking Element Present: No
- Type: Ball Plunger
- Weight: 0.40 lb
- Thread Type: UN
- Threads per Inch: 20
- Lock Type: No
- Plunger Material: Stainless Steel
- Thread Lock Element: 0
- End Force: Heavy
- Body Angle: 0 º
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
