TE-CO 35320 MACHINABLE FIXTURE CLAMPS
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: 35320
IMS Product Code: 1923824
Packaging: Sold Individually
Description:

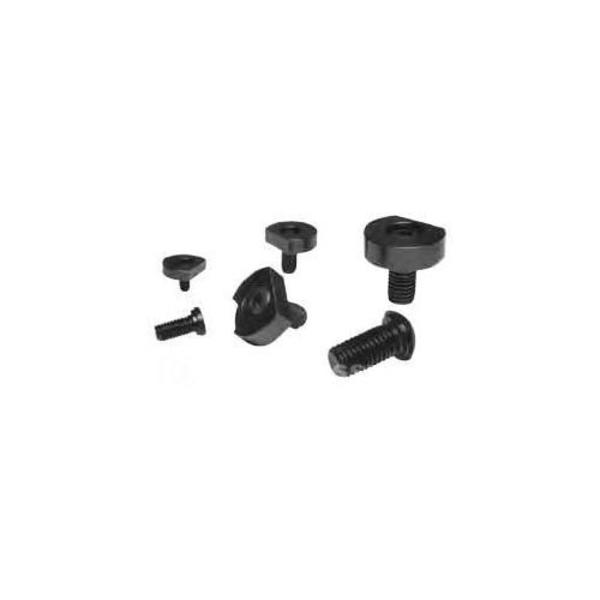

TE-CO 35320 Machinable Fixture Clamps
Specifications:
- Max. Holding Force: 800 lb
- Clamps per Pack1: 4

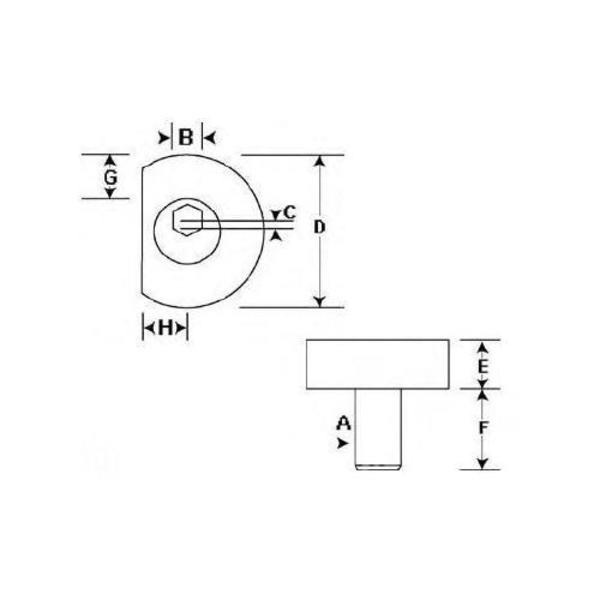

- Thread Size (A): 1/4-20
- Width Across Flats (B): 0.125 in
- Length (C): 0.400 in
- Diameter (D): 0.980 in
- Head Thickness (E): 0.250 in
- Thread Length (F): 0.470 in
- Length (G)2: 0.250 in
- Length (H)3: 0.312 in
- Type: Clamp
- Weight: 0.22 lb
- Material: Mild Steel
- Bolt Size: 1/4
- Head Diameter: 0.980 in
- Style: Machinable Fixture
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
