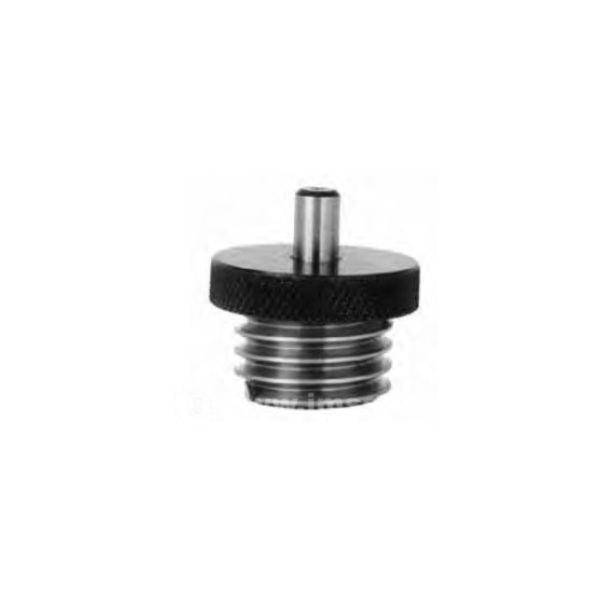

TE-CO 10307 TAPPED HOLE LOCATION GAGES
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: 10307
IMS Product Code: 1793601
Packaging: Sold Individually
Description:
- Material:
- Body: 52100 Steel
- Collar:12L14 Steel - Black oxide finish on collar only
- Two piece construction
- Use to accurately measure the distance between two tapped holes in a workpiece
- Shaft size is the same diameter on all gages to simplify calculation of the hole spread
- All diameters are concentric within .0002 T.I.R. - English:
- Thread Class: 3A
- Left-hand thread, helicoil, or other non-standard gages quoted upon request - Metric:
- Thread Class: 6G
- ISO metric fine pitch thread, left-hand thread, helicoil, or other non-standard gages quoted upon request
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
