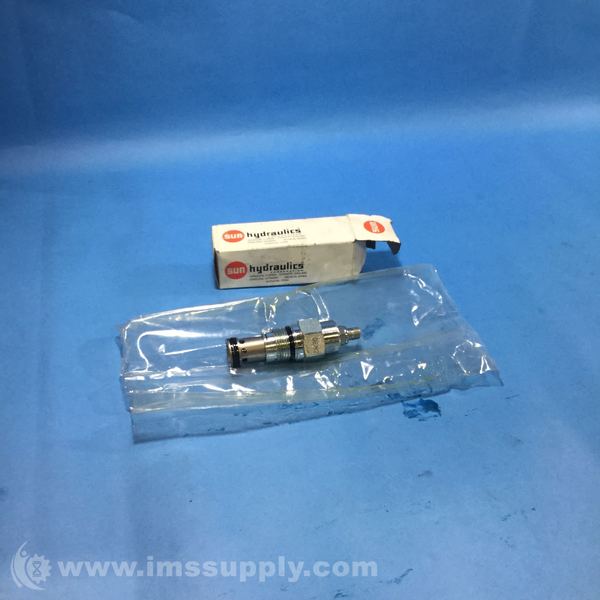

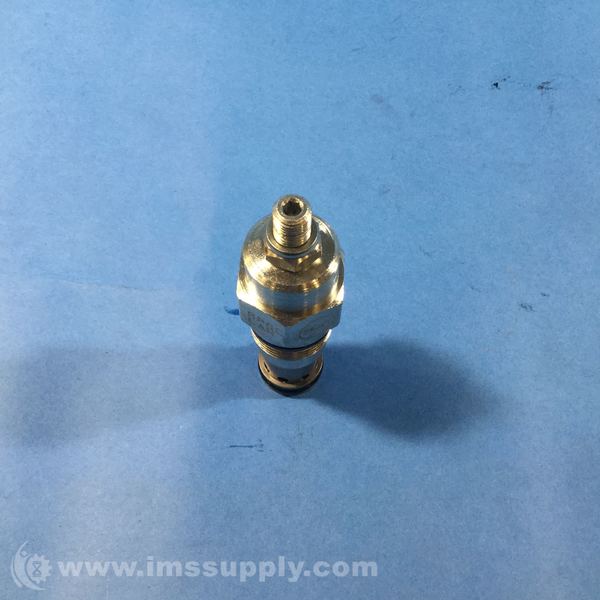

SUN HYDRAULICS RPGC LAN PISTON RELIEF VALVE
Quick Overview
Manufactured By: SUN HYDRAULICS
Manufacturer Part Number: RPGC LAN
IMS Product Code: 1806265
Packaging: Sold Individually
Description:
Sun Hydraulics RPGC LAN Piston Relief Valve
Specifications:
- Cavity: T-3A
- Series: 2
- Capacity: 50 gpm
- Factory Pressure Settings Established at: 4 gpm
- Maximum Operating Pressure: 5000 psi
- Maximum Valve Leakage at 110 SUS (24 cSt): 3 in³/min.@1000 psi
- Response Time - Typical: 10 ms
- Adjustment - No. of CW Turns from Min. to Max. setting: 5
- Valve Hex Size: 1 1/8 in.
- Valve Installation Torque: 45 - 50 lbf ft
- Adjustment Screw Internal Hex Size: 5/32 in.
- Locknut Hex Size: 9/16 in.
- Locknut Torque: 80 - 90 lbf in.
