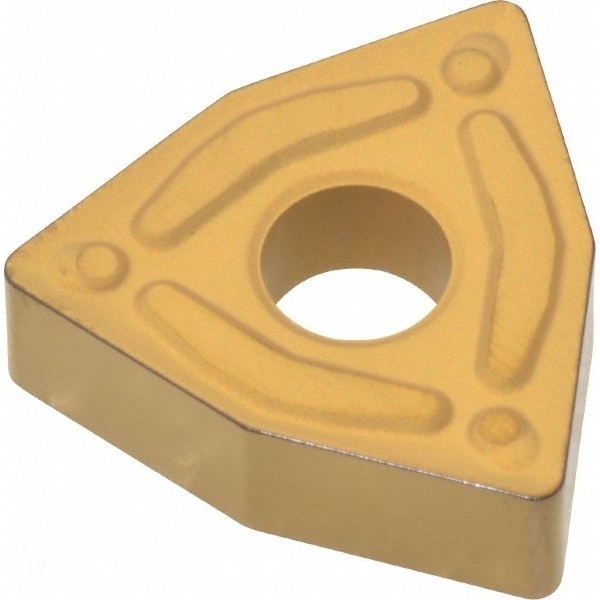

SUMITOMO 19RJ384, WNMG432 ENG GRADE AC820P CARBIDE TURNING INSERT
Quick Overview
Brand: SUMITOMO
Part Number: 19RJ384
IMS Product Code: 1791273
Packaging: Sold Individually
Description:
Sumitomo 19RJ384, WNMG432 ENG Grade AC820P Carbide Turning Insert
Specifications:
| Insert Style | WNMG |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle | 12.70 |
| Inscribed Circle | 0.5000 |
| Inscribed Circle | 1/2 |
| Thickness | 3/16 |
| Thickness | 0.1875 |
| Corner Radius | 1/32 |
| Corner Radius | 0.0313 |
| Manufacturer's Grade | AC820P |
| Material Grade | C5A/C6/C7/C8 |
| Chip breaker | ENG |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 0 |
| Primary Workpiece Material | P; M |
| Included Angle | 80 |
| Insert Holding Method | Pin & Clamp |
| Shape | Trigon |
