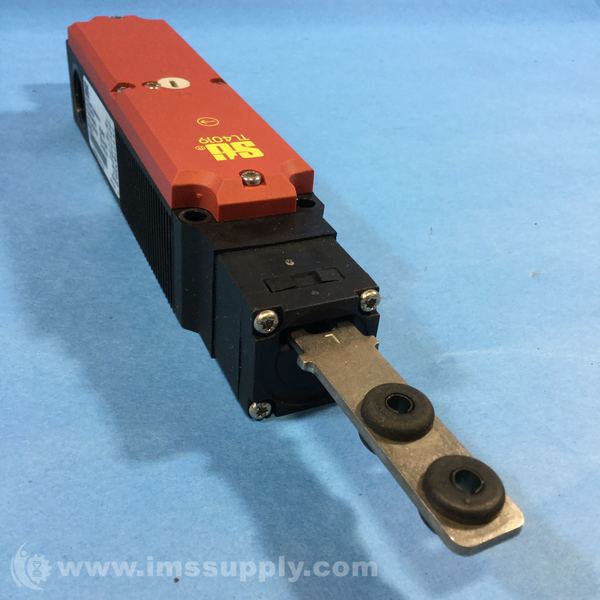

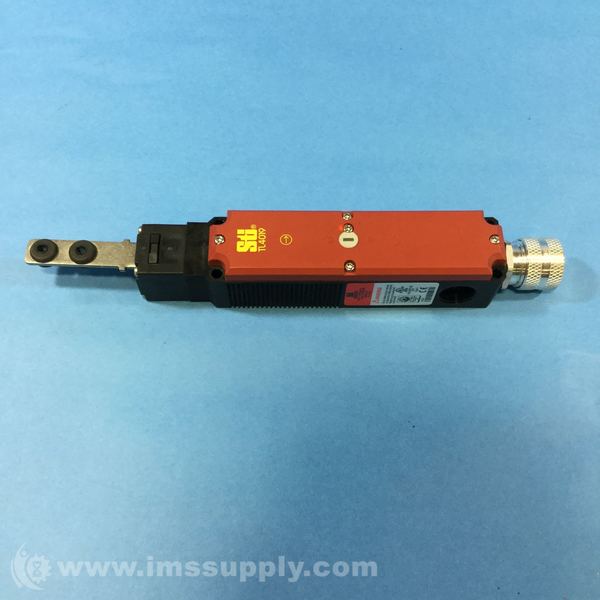

STI TL4019-40242 SAFETY INTERLOCK SWITCH WITH GUARD DOOR LOCKING
Starting At: $90.56
Quick Overview
Manufactured By: STI
Manufacturer Part Number: TL4019-40242
IMS Product Code: 1777969
Packaging: Sold Individually
Description:
Sti TL4019-40242 Safety Interlock Switch with Guard Door Locking
Specifications:
- Switching Ability: AC: 230 V – 4 A/DC: 24 V – 4 A
- Safety Contact Material: Silver alloy with gold flash
- Minimum Current: 24 V 1 mA
- Solenoid Supply Voltage: 24 VAC/DC or 110 VAC (all -15% / +10%)
- Solenoid Power: 8 W
- Solenoid Rating: 100% duty
- Mechanical Mounting: Any position
- Mounting Hardware: 4 x M5 screws (not supplied)
- Min Operating Radius: Approximately 100 mm (3.9 in.) with flex actuators/Approximately 1000 mm (39 in.) with flat and 90-degree actuators
- Max Holding Force: 1200 N (270 lb.)
- Max Actuation Speed: 20 m/min.
- Case Material: Reinforced thermoplastic
- Actuator Material: Stainless steel
- Wiring Entry: 3 x M20 conduit with 0.5 in. NPT adapter
- Weight: 500 g (17 oz.)
- Color: Red
- Mechanical Life: 1 x 10 minimum
- Environmental Protection: IP67 (NEMA 6)
- Operating Temperature: -20 to 55°C (-4 to 131°F)
- Cleaning: Water washdown
- Part No: 44535-2130
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
