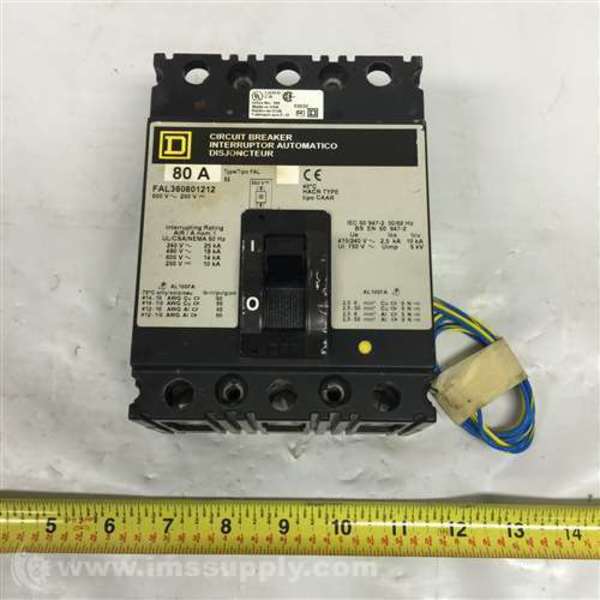

SQUARE D FAL36080-1212 CIRCUIT BREAKER, AMPS 80, 3-POLE
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: FAL36080-1212
IMS Product Code: 1768919
Packaging: Sold Individually
Description:
Square D FAL36080-1212 Circuit Breaker, Amps 80, 3-Pole, Standard Type
Specifications:
- Terminal Connection: Lug
- Phase Connection: ABC
- Trip Type: Thermal Magnetic
- Min. Wire Size: 14 AWG (Cu), 12 AWG (Al)
- Series: FAL
- Width: 4.50"
- Number of Poles: 3
- Max. Wire Size: 1/0 AWG
- Standards: UL Listed, CSA Certified, CE Marked, IEC, Federal Specification W-C-375B/GEN Amps: 80
- Phase: 3
- Depth: 4.16"
- Mounting: Free Standing
- For Use With: -
- AC Voltage Rating: 600VAC
- Max. AIR Rating: Not Rated
- Circuit Breaker Type: Standard
- Item: Circuit Breaker
- Low Amp Trip Setting: 800A
- DC Voltage Rating: 250VDC
- Height: 6.00"
- Frame Size: 100A/FA
- High Amp Trip Setting: 1450A
- Instantaneous Trip: Fixed
- Country of Origin (subject to change): Mexico
