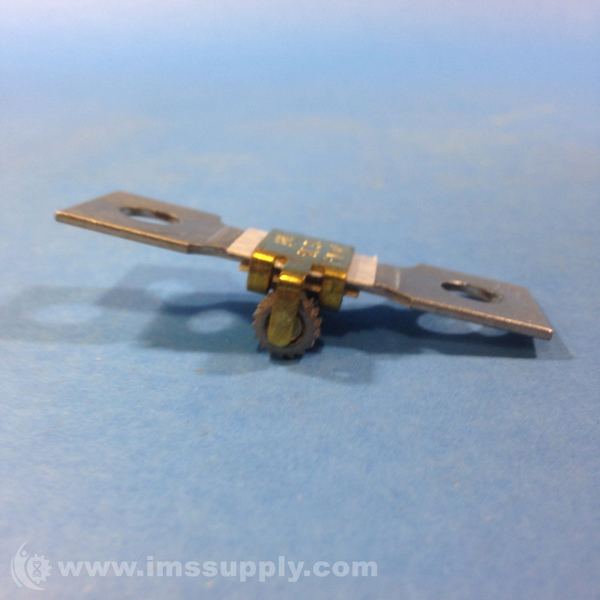

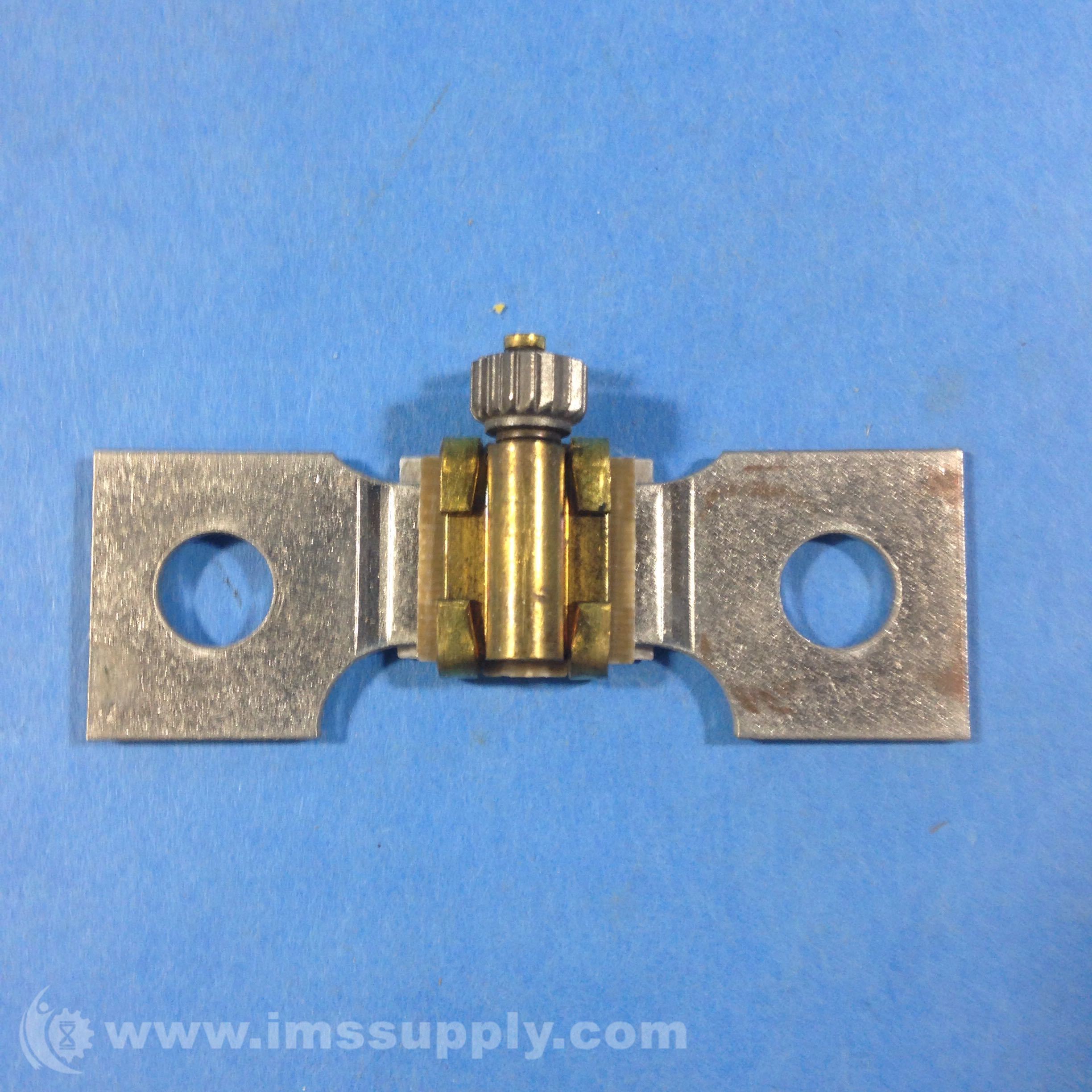

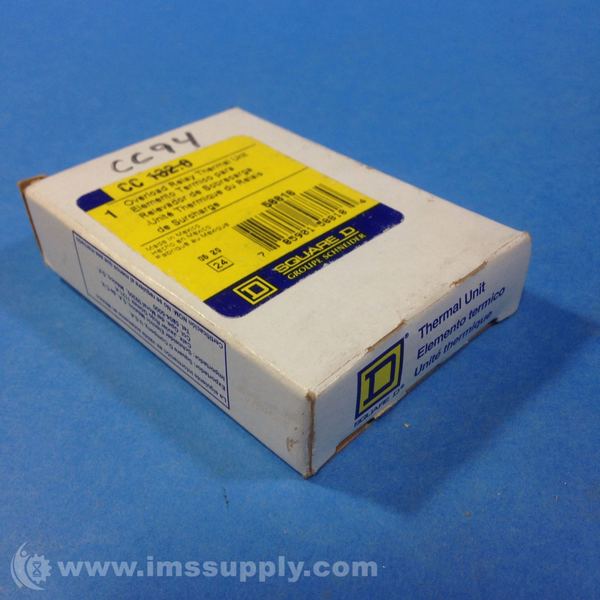

SQUARE D CC94 OVERLOAD THERMAL UNIT HEATING ELEMENT
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: CC94
IMS Product Code: 1745383
Packaging: Sold Individually
Description:
Square D CC94 Overload Thermal Unit Heating Element
Specifications:
• Manufacturer: Square D
• Cat. No.: CC94.0
• Overload Thermal Unit Heating Element
• Application : For use in thermal overload relays
• FL Amp @ 3-Ph/ Size 3/ Open and Large Enclosure: 60.9
• FL Amp @ 3-Ph/ Size 3/ Standard Enclosure: 57.4
• FL Amp @ 3-Ph/ Size 4/ Open and Large Enclosure: 71.4
• FL Amp @ 3-Ph/ Size 4/ Standard Enclosure: 61.8
• For Use With Square D NEMA Motor Starters 3, 4
• Full Load Current Range: Dependant on overload relay
• Height: 2.4000
• Length: 4.8000
• Motor FLA: 51.7 to 122.5 A (1 Thermal Unit), 56.6 to 74 A (2 Thermal Unit), 53.5 to 71.4 A (3 Thermal Unit)
• Mounting : Plug in
• Reset Type: Manual
• Trip Type: Standard Trip
• Type: Thermal - Melting Alloy Thermal Unit
• Width: 3.5000
• Authentic Square D Product.
