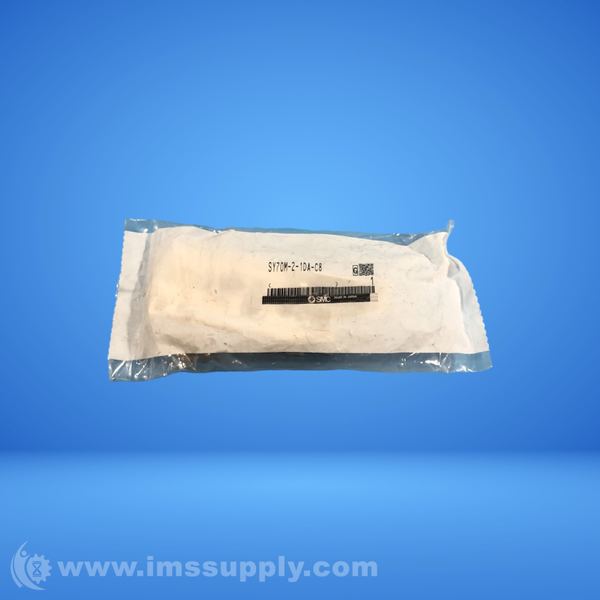

SMC SY70M-2-1DA-C8 MANIFOLD BLOCK
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: SY70M-2-1DA-C8
IMS Product Code: 2043219
Packaging: Sold Individually
Description:
SMC SY70M-2-1DA-C8 Manifold Block
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY can be used individually or manifold mounted.
- Fluid: air
- Operating pressure range: (internal pilot) 0.1 - 0.7MPa
(external pilot) -100kPa to 0.7MPa
(external pilot, pilot pressure range) 0.25 - 0.7MPa - Effective area mm 2 (Cv): body ported 10.6 (0.59);
base mounted 12.6 (0.7) - Coil rated voltage: 3, 5, 6, 12, 24VDC;
100, 110, 200, 220VAC - Response time (0.5MPa) w/o indicator light andamp;
surge voltage suppressor: 32ms or less - Ambient andamp; fluid temperature: 50 C
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 3 In Stock
Ships today if ordered in the next 2 hours and 32 minutes.
