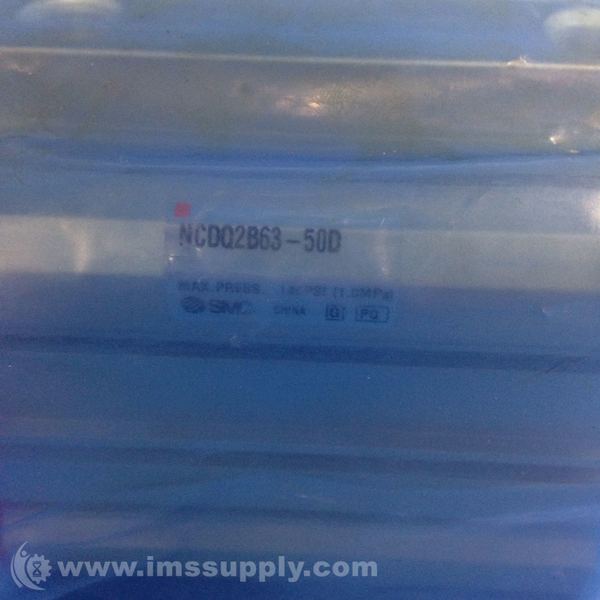

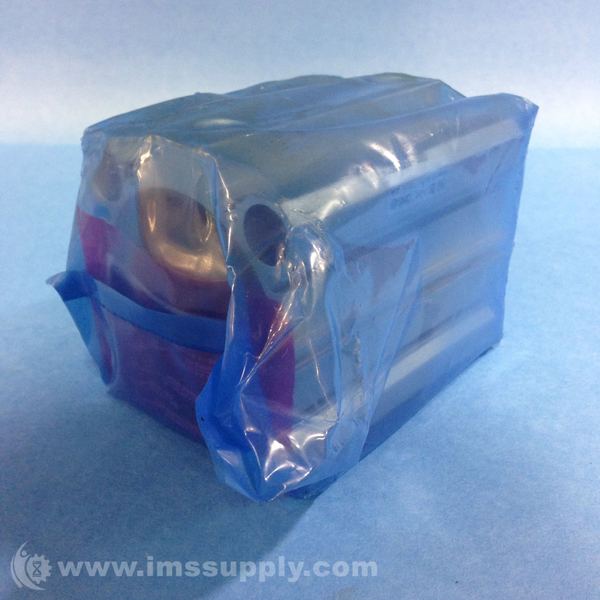

SMC NCDQ2B63-50D COMPACT AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCDQ2B63-50D
IMS Product Code: 1734753
Packaging: Sold Individually
Description:
Smc NCDQ2B63-50D Compact Air Cylinder
Specifications:
- Bore Diameter: 63 mm
- Stroke Length: 50 mm
- Compact Cylinder Type: Standard
- Double-Acting Piston
- Through-Hole Mounting
- Single Rod
- Rod Size / Thread: 1/2-20 Female UNF in
- Port Type: 1/4 Female NPT Threaded in
- Options Included: Magnetized, Switch Ready
- Proof Pressure: +217 psi
- Operating Pressure Range: +7.25 to +145 psi
- Push Force at 100 psi: 483 lbf
- Pull Force at 100 psi: 434 lbf
- Operating Temperature Range: +15 to +140 °F
- Standards Met: JIS Class 2
- Overall Length: 104 mm
- Overall Width: 93 mm
- Overall Height: 77 mm
