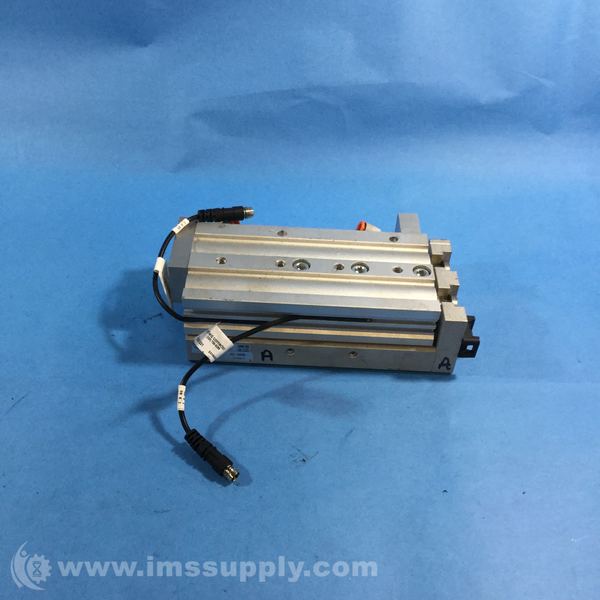

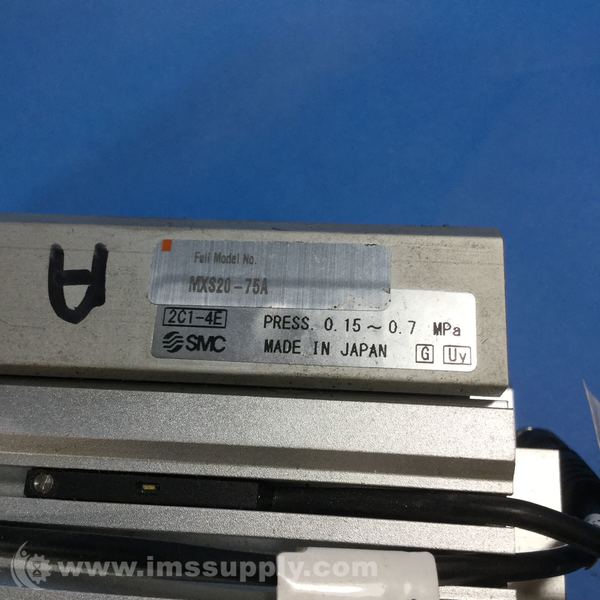

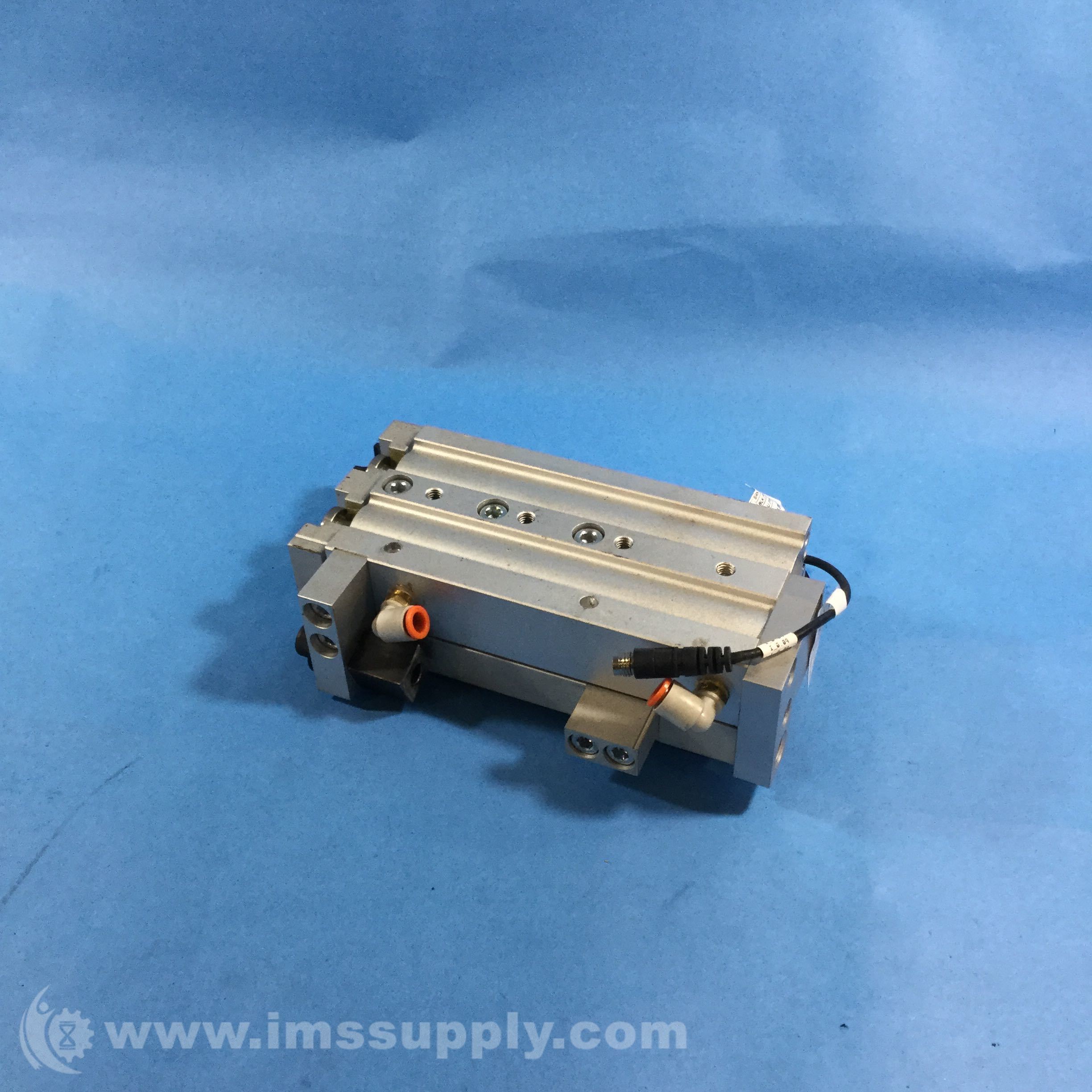

SMC MXS20-75A PNEUMATIC SLIDE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MXS20-75A
IMS Product Code: 1805027
Packaging: Sold Individually
Description:
SMC MXS20-75A Pneumatic Slide
Specifications:
- Slide Table Type: Air Slide Table (MXS Series)
- Proof Pressure: +1.05 Mpa
- Bore Diameter: 20 mm
- Operating Pressure Range: +0.15 to +0.7 Mpa
- Stroke Length: 75 mm
- Maximum Applied Force: 440 N
- Adjuster Option: Adjuster (Both Ends)
- Operating Temperature Range: -10 to +60 °C
- Magnet Included: Magnet Included
- Piston Action: Double-Acting
- Bearings Included: Cross Roller Bearing
- Thread Standard: BSPT
- Port Size: 1/8 in
