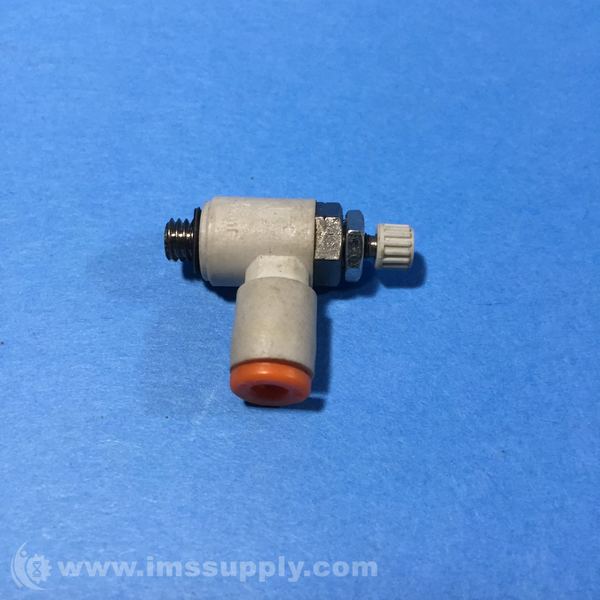

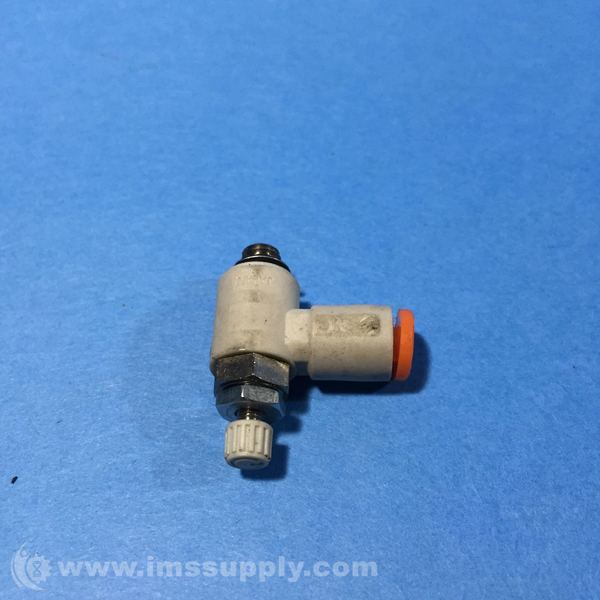

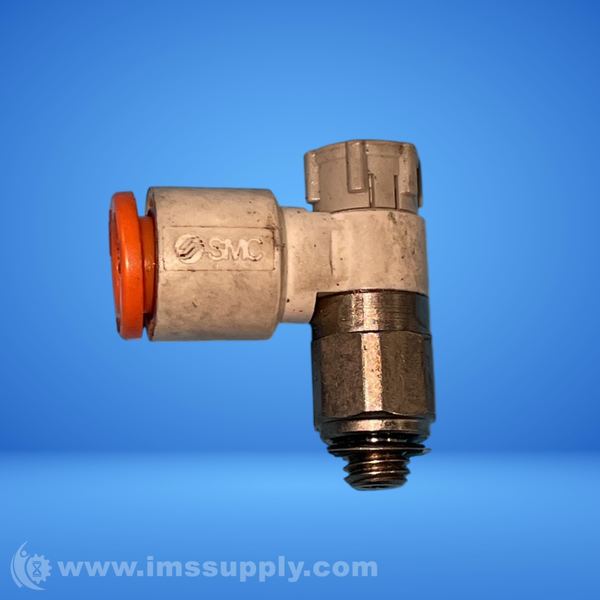

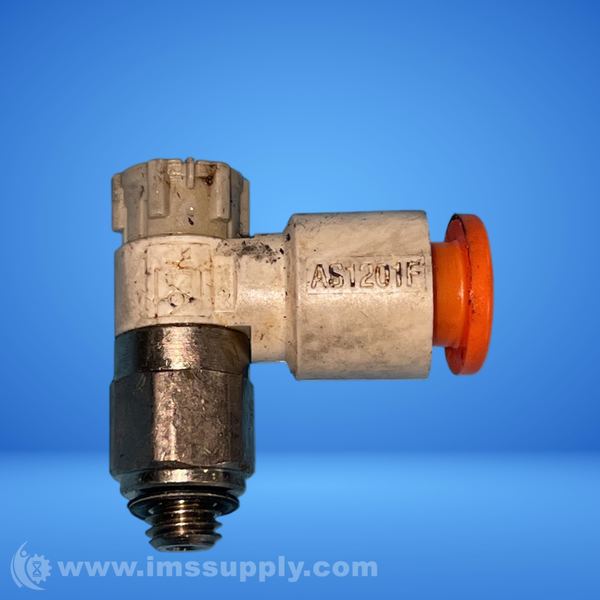

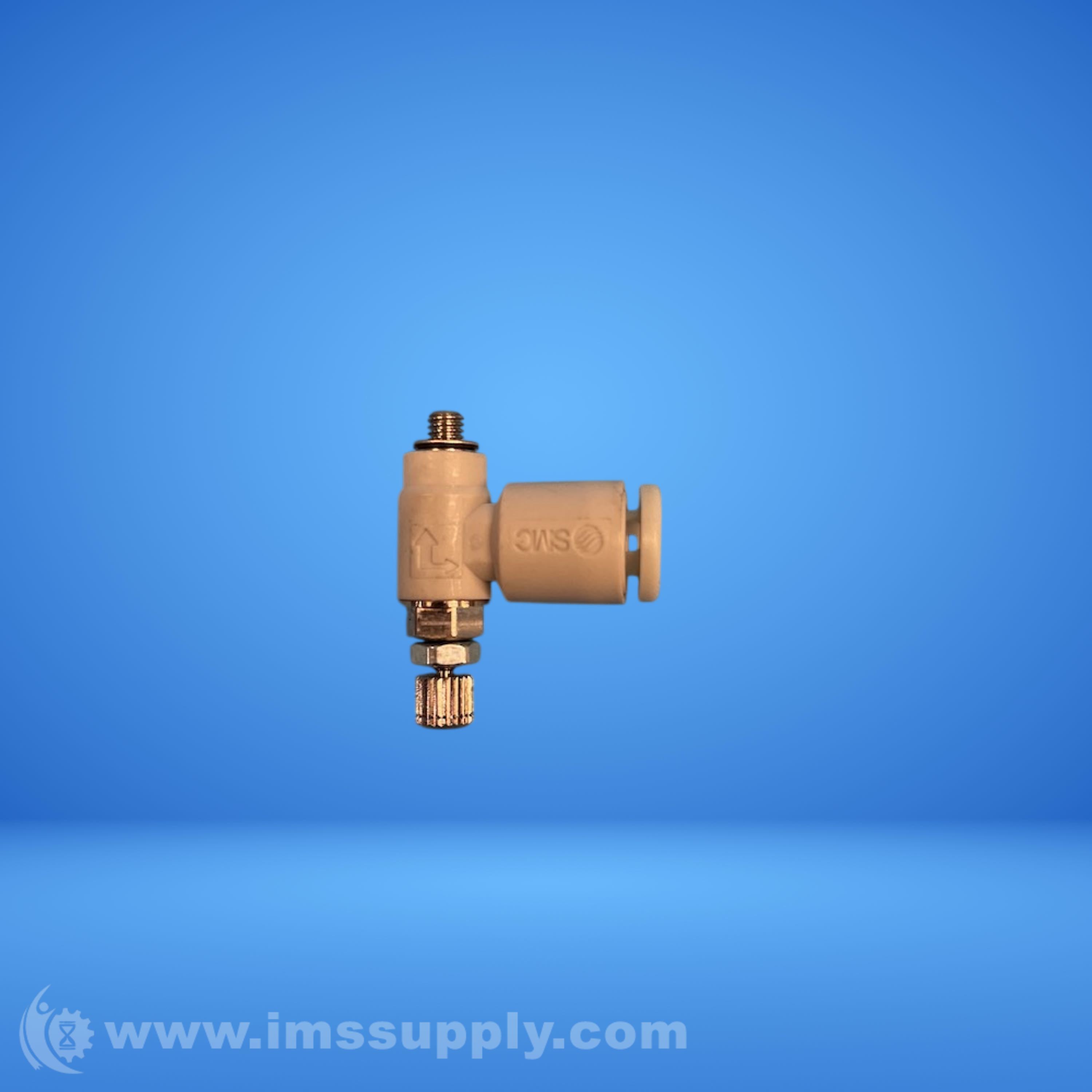

SMC AS1201F PNEUMATIC FLOW CONTROL
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: AS1201F
IMS Product Code: 1803071
Packaging: Sold Individually
Description:
SMC AS1201F Pneumatic Flow Control
Specifications:
- Piping type: Elbow
- Body material: Brass, PBT
- Metering: Meter Out
- Port connection type: Push To Connect
- Thread standard: ISO
- Output port type: M5 x 0.8 Female ISOThreaded
- Tube size: 4 (OD) mm
- Overall width: 9.6 mm
- Operating medium: Air
- Overall height: 22.1 mm
- Proof pressure: +1.5 Mpa
- Flow coefficient (cv) / flow factor (kv): 1.5mm²
- Operating pressure range: +0.1 to +1 Mpa
- Seal material: Nitrile
- Operating temperature range: -5 to +60 °C
- Standards met: JIS
- Valve function: Needle
- Overall length: 28.6 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 20 In Stock
Ships on Monday, November 25, 2024
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
