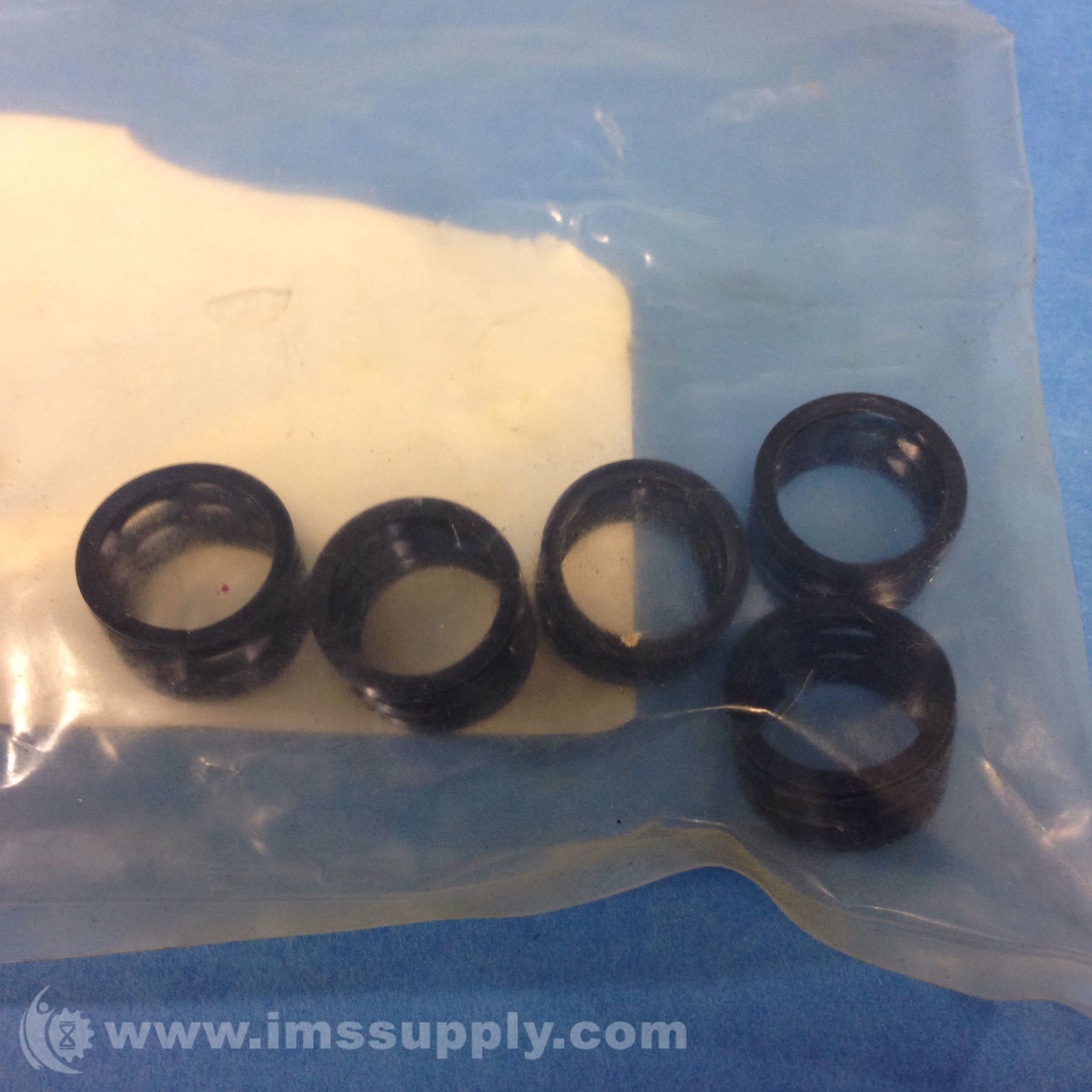

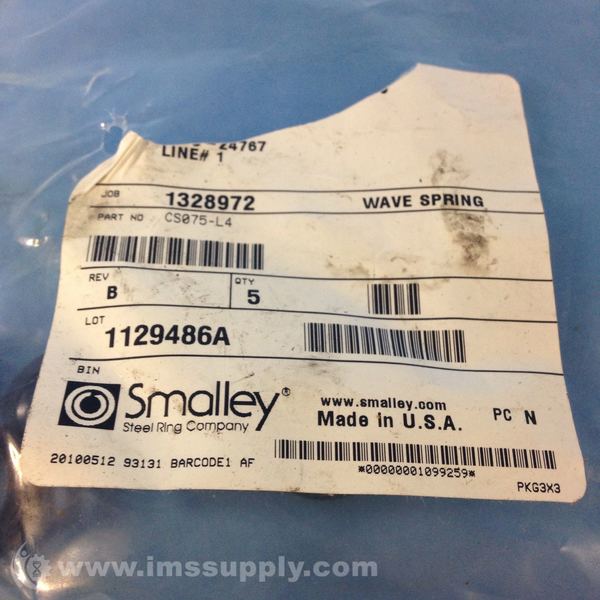

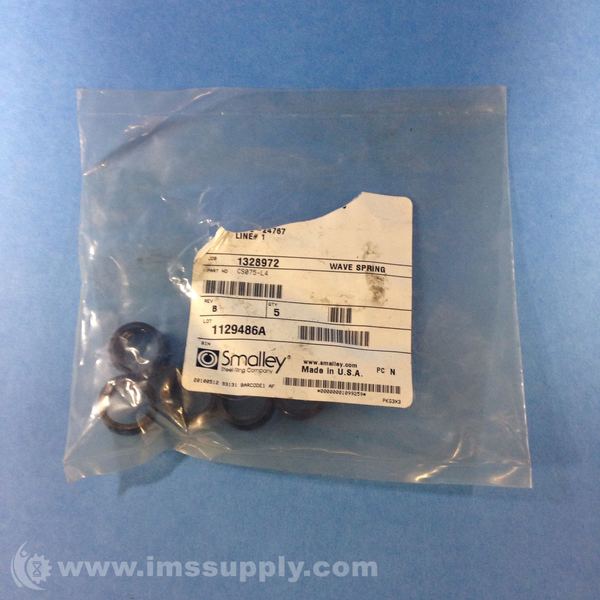

SMALLEY CS075-L4 WAVE SPRING (1328972)

Starting At: $6.90

Quick Overview

Manufactured By: SMALLEY
Manufacturer Part Number: CS075-L4
IMS Product Code: 1734460
Packaging: Sold Individually

Description:

Smalley Steel Ring Company CS075-L4 Wave Spring (1328972)

Specifications:

  • Material: Carbon Steel SAE 1070-1090
  • Spring Type: Crest-to-Crest w/ Shims
  • Operates in Bore (in): 0.750
  • Clears Shaft Diameter (in): 0.550
  • Load (lb): 7
  • Work Height (in): 0.285
  • Free Height (in): 0.500
  • CAD Height (in): CAD Height can Only be Between Solid and Free Height
  • Number of Waves/Turn: 3.5
  • Number of Turns: 6
  • Number of Shims: 2
  • Wire Thickness (in): 0.008
  • Wire Radial Wall (in): 0.071
  • Spring Rate (lbs/in): 33.00

New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).

Availability: 8 In Stock

Ships today if ordered in the next 3 hours and 14 minutes.
