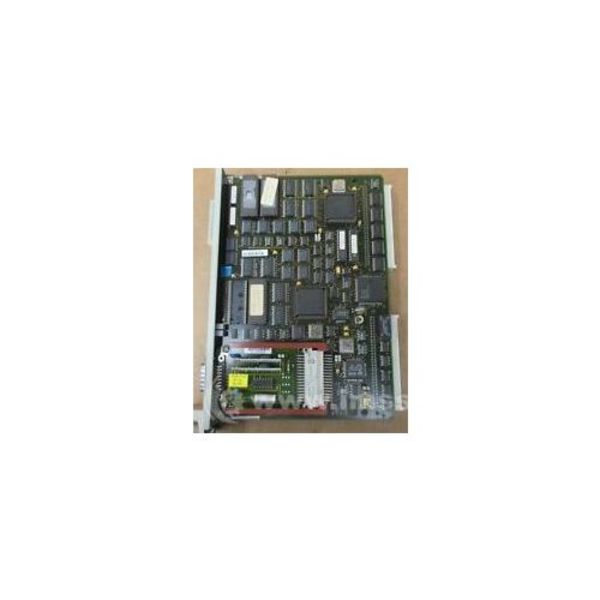

SIEMENS 6ES5-928-3UB12 CPU MODULE
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 6ES5-928-3UB12
IMS Product Code: 1207331
Packaging: Sold Individually
Description:
Siemens 6ES5-928-3UB12 CPU Module
Specifications:
- Degree of protection: IP 00
- Supply voltage: 5 V+ 5 %, 24 V + 25 %/ -17 %
- Current consumption at 5 V: 5 A typical
- Current consumption at 24 V: 760 mA max.
- Backup voltage: 3.4 V
- Backup Current: 20 A typical (at 25 C)
- Size of user memory: 64 x 2 bytes max., EPROM or RAM
- DB RAM: 46 x 2(10)byte
- Transmission rate of the serial PG interface: 9600 bps
- Program blocks PB: 256
- Sequence blocks SB: 256
- Function blocks FB: 256
- Function blocks FX: 256
- Data blocks DB: 256, of which 253 are freely available
- Data blocks DX: 256, of which 253 are freely available
- Organization blocks OB: OB 1 to 39 (interfaces for operating system)
- Integrated serial interface: PG interface
- Optional serial interface: Via interface submodules, optionally as V.24, TTY, RS 422A/485 or, PG interface, SINEC L1 interface from Version 6ES5 928-3UB12
- Backplane bus: S5 bus
- Dimensions (w x h x d): 40.64 x 233.4 x 160 mm
- Weight: Approx. 1 kg
