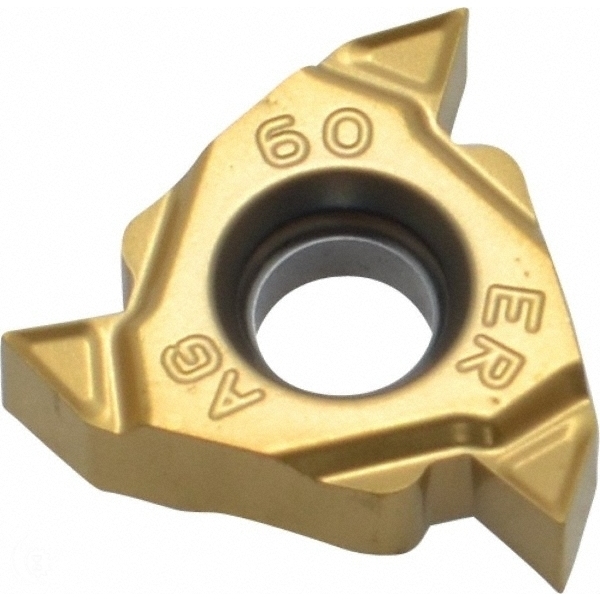

SECO TOOLS 77941 INSERT THREADING CARBIDE GRADE CP500 16ER STYLE
Quick Overview
Manufactured By: SECO TOOLS
Manufacturer Part Number: 77941
IMS Product Code: 1790889
Packaging: Sold Individually
Description:
Seco Tools 77941 Insert Threading Carbide Grade Cp500 16Er Style External Thread Right Hand 48-8 Tpi Partial Profile 60 Degree Laydown Tiain Tin Coated Chipbreaker A2 3/8 In Inscribed Circle
Specifications:
- Material Carbide
- Insert Style 16ER
- Insert Hand Right Hand
- Thread Type External
- Thread Standard Partial Profile 60
- Material Grade Micrograin
- Manufacturer's Grade CP500
- Threads Per Inch 48-8
- Pitch 0.50-3.00
- Inscribed Circle 3/8
- Inscribed Circle 0.3750
- Thickness 0.1366
- Coating TiAlN/TiN
- Coating Process PVD
- Corner Radius (Decimal Inch) 0.0030
- Cutting Edge to Theoretical Edge Length (Decimal Inch) 0.043
- Face of Insert to Tip Centerline (Decimal Inch) 0.059
- Chipbreaker A2
