SECO 77371,SPGX0602 C1 T400D GRADE CARBIDE INDEXABLE INSERT DRILL
Quick Overview
Manufactured By: SECO TOOLS
Manufacturer Part Number: 77371
IMS Product Code: 1791162
Packaging: Sold Individually
Description:

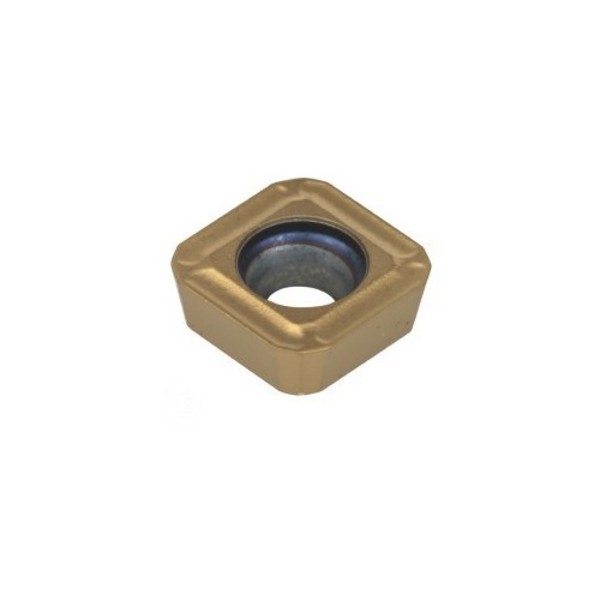

Seco 77371, SPGX0602 C1 T400D Grade Carbide Indexable Insert Drill
TiAlN/TiN Coated, Square, 1/4" Inscr Circle, 0.094" Thick, 11° Relief Angle
Specifications:
| Insert Style | SPGX |
| Insert Size | 0602 |
| Material | Carbide |
| Material Grade | C1 |
| Manufacturer's Grade | T400D |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 2.38 |
| Thickness (Decimal Inch) | 0.0940 |
| Hole Diameter (Decimal Inch) | 0.1020 |
| Relief Angle | 11 |
| Included Angle | 90 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | C1 |
