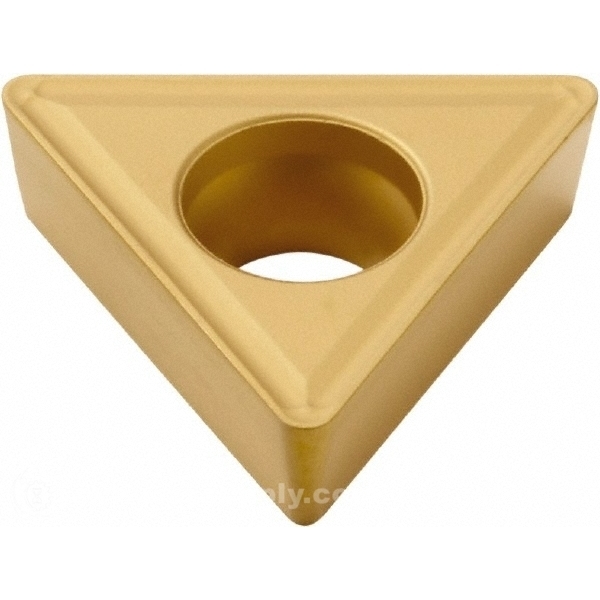

SECO 68150 TCMT432 F2 GRADE TP200 CARBIDE TURNING INSERT
Quick Overview
Manufactured By: SECO TOOLS
Manufacturer Part Number: 68150
IMS Product Code: 1790874
Packaging: Sold Individually
Description:
Seco 68150 TCMT432 F2 Grade TP200 Carbide Turning Insert
TiCN/Al2O3/TiN Finish, 60° Triangle, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Specifications:
- Insert Style TCMT
- Insert Size 432
- Material Carbide
- Inscribed Circle (mm) 12.70
- Inscribed Circle (Decimal Inch) 0.5000
- Inscribed Circle (Inch) 1/2
- Thickness (Inch) 3/16
- Thickness (Decimal Inch) 0.1875
- Corner Radius (Inch) 1/32
- Corner Radius (Decimal Inch) 0.0312
- Manufacturer's Grade TP200
- Coating TiCN/Al2O3/TiN
- Material Grade C6
- Chip breaker F2
- Hole Diameter (Decimal Inch) 0.2170
- Relief Angle 7
- Coating Process CVD
- Included Angle 60
- Insert Holding Method Screw
- Shape Triangle
