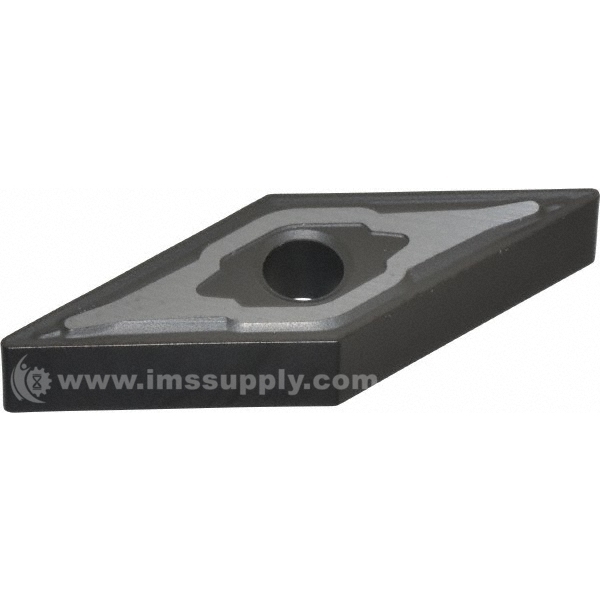

SECO TOOLS 50438 INSERT TURNING SIZE 331 CARBIDE GRADE
Quick Overview
Manufactured By: SECO TOOLS
Manufacturer Part Number: 50438
IMS Product Code: 1790633
Packaging: Sold Individually
Description:
Seco Tools 50438 Insert Turning Size 331 Carbide Grade Tp3500 Vnmg Series Diamond Ticn Ai203 Coated 35 Degree 3/8 In Inscribed Circle 1/64 In Corner Radius Chipbreaker M3
Specifications:
- Insert Style VNMG
- Insert Size 331
- Material Carbide
- Inscribed Circle 0.3750
- Inscribed Circle 3/8
- Thickness 3/16
- Thickness 0.1875
- Corner Radius 1/64
- Corner Radius 0.0156
- Manufacturer's Grade TP3500
- Coating TiCN/Al2O3
- Material Grade C5
- Chip breaker M3
- Hole Diameter (Decimal Inch) 0.1500
- Relief Angle 0
- Coating Process Duratomic
- Primary Workpiece Material P
- Secondary Workpiece Material M
- Included Angle 35
- Insert Hand Neutral
- Insert Holding Method Pin & Clamp
- Shape Diamond
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
