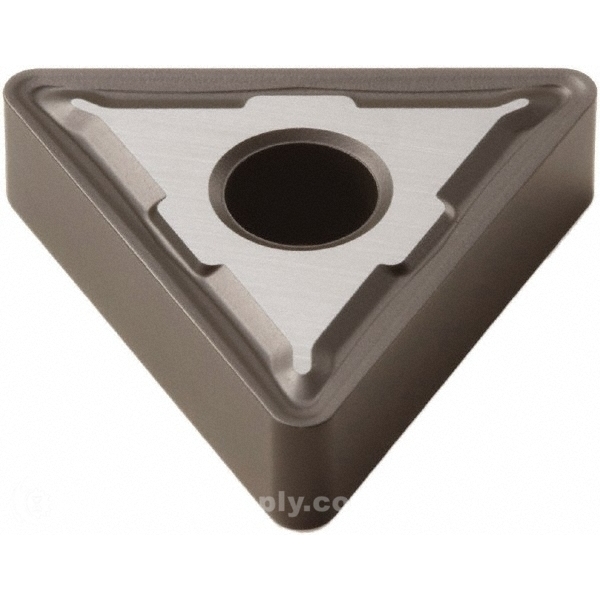

SECO 50194, TNMG433 M5 GRADE TP3500 CARBIDE TURNING INSERT
Quick Overview
Manufactured By: SECO TOOLS
Manufacturer Part Number: 50194
IMS Product Code: 1791085
Packaging: Sold Individually
Description:
Seco 50194, TNMG433 M5 Grade TP3500 Carbide Turning Insert
Specifications:
| Insert Style | TNMG |
| Insert Size | 433 |
| Material | Carbide |
| Inscribed Circle | 12.70 |
| Inscribed Circle | 0.5000 |
| Inscribed Circle | 1/2 |
| Thickness | 3/16 |
| Thickness | 0.1875 |
| Corner Radius | 3/64 |
| Corner Radius | 0.0469 |
| Manufacturer's Grade | TP3500 |
| Coating | TiCN/Al2O3 |
| Material Grade | C5 |
| Chip breaker | M5 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 0 |
| Coating Process | Duratomic |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
