SECO 50153, TNMG 432-M3 TP3500 TURNING INSERT CARBIDE
Quick Overview
Manufactured By: SECO TOOLS
Manufacturer Part Number: 50153
IMS Product Code: 1791071
Packaging: Sold Individually
Description:

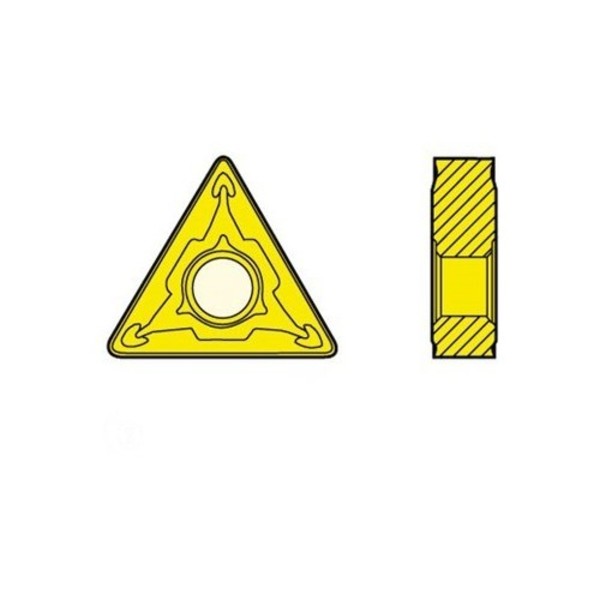

Seco 50153, TNMG 432-M3 TP3500 Turning Insert Carbide
Specifications:
- Brand Name - Seco
- Type - Negative Basic Shape
- Insert Style - TNMG
- Material - Carbide
- Manufacturers Grade - TP3500
- Material Grade - C5
- ANSI Code - TNMG432-M3
- Chipbreaker - M3
- Hand of Insert - Neutral
- Inscribed Circle - 12.7 mm
- ISO Code - TNMG220408-M3
- Shape - T-Triangle
- Corner Radius - 0.8 mm
- Hole Diameter - 5.15 mm
- Included Angle - 60 deg
- Insert Size - 22
- Length - 22 mm
- Maximum Depth of Cut - 5.25 mm
- Relief Angle - 0 deg
- Thickness - 4.76 mm
- Width - 22 mm
- Finish - CVD Coated
