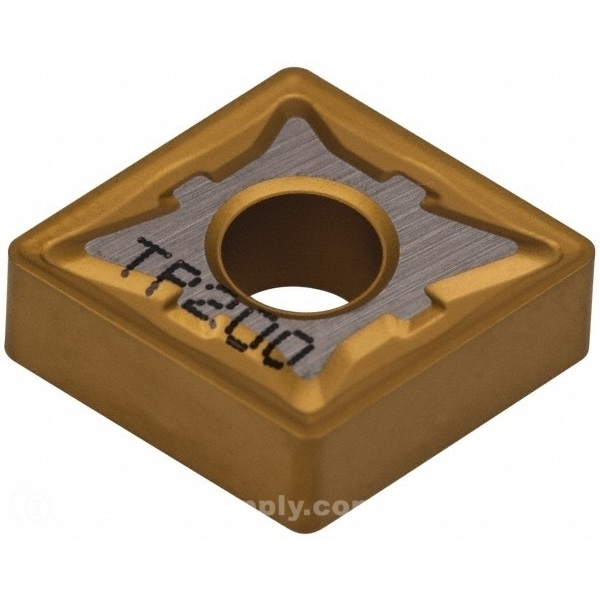

SECO TOOLS 23678 INSERT TURNING SIZE 432 CARBIDE GRADE TP200 CNMG
Quick Overview
Manufactured By: SECO TOOLS
Manufacturer Part Number: 23678
IMS Product Code: 1791330
Packaging: Sold Individually
Description:
Seco Tools 23678 Insert Turning Size 432 Carbide Grade Tp200 Cnmg Style Diamond Shape Ticn Ai203 Tin Coated 80 Degree 1/2 In Inscribed Circle 1/32 In Corner Radius Chipbreaker M5
Specifications:
| Insert Style | CNMG |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle | 12.70 |
| Inscribed Circle | 0.5000 |
| Inscribed Circle | 1/2 |
| Thickness | 3/16 |
| Thickness | 0.1875 |
| Corner Radius | 1/32 |
| Corner Radius | 0.0312 |
| Manufacturer's Grade | TP200 |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | C6 |
| Chip breaker | M5 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M; K |
| Included Angle | 80 |
| Shape | Diamond |
