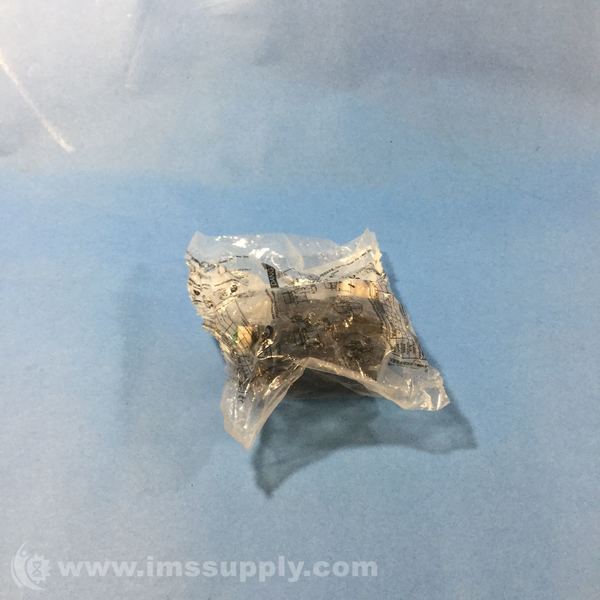

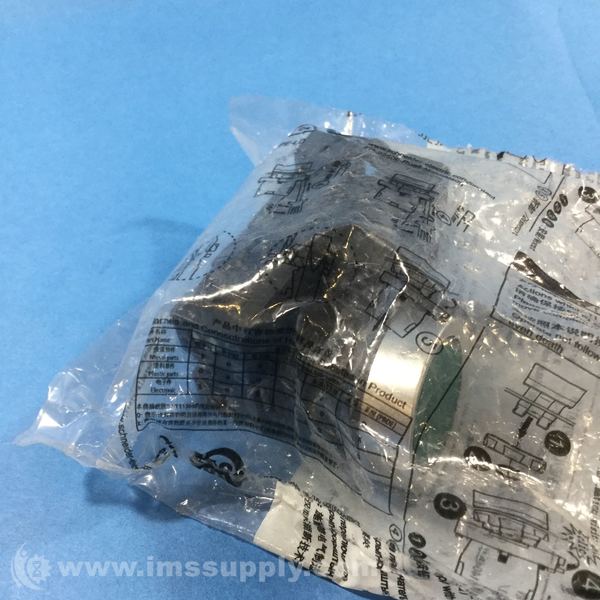

SCHNEIDER ELECTRIC XA2EW33B1 ILLUMINATED PUSH-BUTTON, GREEN
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: XA2EW33B1
IMS Product Code: 1807271
Packaging: Sold Individually
Description:
Schneider Electric XA2EW33B1 Illuminated Push-Button, Green
Specifications:
- Operating position: Any position
- Fixing center: >= 30 x 40 mm (panel) - thickness: 1...5 mm
- Fixing mode: Fixing nut (2.2 N.m) Us +/- 10 %
- Shape of signaling unit head: Round
- Type of operator: Spring return
- Operator profile: Flush (green)
- Contacts type and composition: 1 NO
- Contact operation: Slow-break
- Mechanical durability: 1500000 cycles
- Connections - terminals:
- Screw clamp terminals, clamping capacity: <= 1 x 2.5 mm²
- Screw clamp terminals, clamping capacity: <= 2 x 1.5 mm²
- Screw clamp terminals, clamping capacity: >= 1 x 0.5 mm²
- Faston terminals, connection size: 6.3 mm
- Tightening torque: 0.8 N.m
- Short-circuit protection: 10 A (gL fuse) conforming to IEC 60269-1
- [Ith] conventional free air thermal current: 10 A
- [Ui] rated insulation voltage: 600 V conforming to IEC 60947-4-1
- [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-1
- [Ie] rated operational current:
- 3 A at 240 V AC-15 A600
- 0.27 A at 250 V DC-13 Q600
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
