ROD-L ELECTRONICS INC. M100DC-7.0-5 M100DC HIPOT TESTER

Starting At: $215.00

Quick Overview

Manufactured By: ROD-L ELECTRONICS INC.

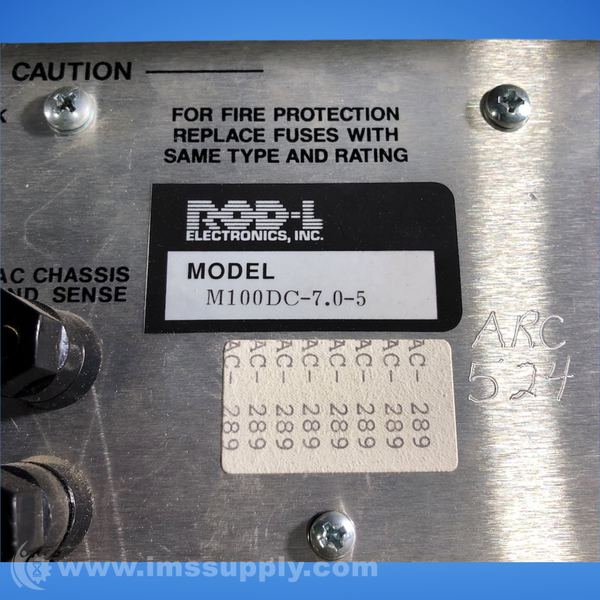

Manufacturer Part Number: M100DC-7.0-5
IMS Product Code: 1979279
Packaging: Sold Individually

Description:

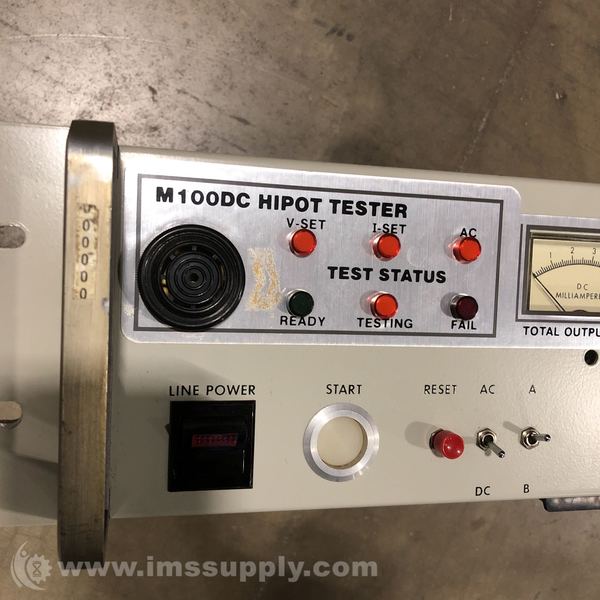

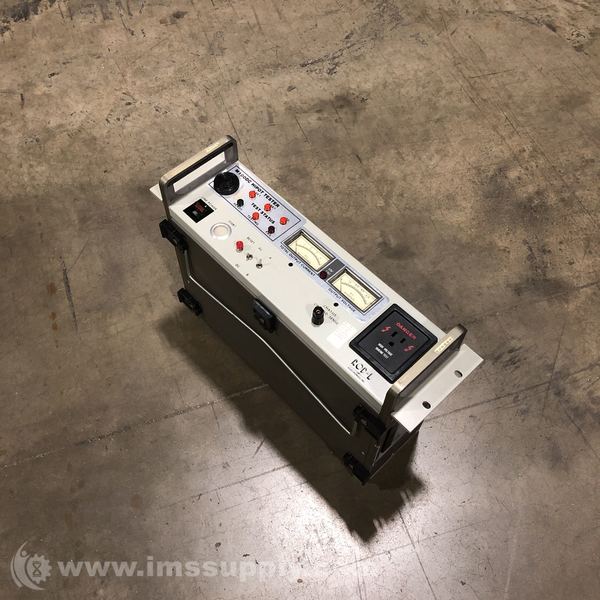

ROD-L Electronics Inc. M100DC-7.0-5 M100DC HiPot Tester

Additional Features:

  • Maximum Output Voltage: 0 to 5000 Volts DC, user-adjustable
  • Maximum Output Voltage Ripple: 1% at full load, 0.05% at zero current
  • Regulation: 0.05% at full load
  • Output Voltage Ramp Rate: 50 V/sec to 5000 V/sec, user-adjustable
  • Output Current: 40 uA to 5 mA
  • Output Current Resolution: 4 uA
  • Test Time: 1 to 90 seconds, user-adjustable
  • Initial Turn-On Period: Requires 2 seconds for the safety-ground pretest before the HiPot test
  • Ground Continuity Reject Level: 0.1 to 0.5 Ohms, user-adjustable to within +/- 0.01 Ohms
  • Accuracy: Better than 1%
  • Output Voltage Control Resolution: 2.5V
  • Arc Detection: Yes
  • Shutdown Time: Within 2 milliseconds after a fault or the end of test is detected
  • Line Input Voltage: 115/230 Volts AC, 44-66 Hz
  • Maximum Line Input Power Required: 360 Watts
  • Ambient Operating Temperature: 0° to 50° C, 32° to 122° F
  • Performs concurrent ground continuity monitoring during the HiPot test and stops the test if it detects a fault
  • Includes arc and overcurrent detection

Used:
A previously used, fully functional product that may have some signs of cosmetic wear.

Availability: 1 In Stock

Ships today if ordered in the next 3 hours and 43 minutes.

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of ROD-L Electronics Inc.. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
