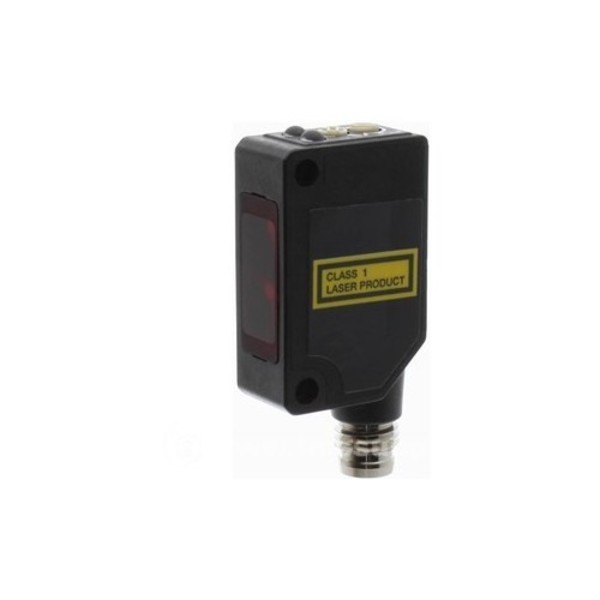

RAMCO ZD-L40CN OPTEX COMPACT DIFFUSE LASER SENSOR
Starting At: $153.86
Quick Overview
Manufactured By: RAMCO
Manufacturer Part Number: ZD-L40CN
IMS Product Code: 1927602
Packaging: Sold Individually
Description:
Ramco ZD-L40CN Optex Compact Diffuse Laser Sensor - 400mm Sensing Range - NPN - M8 4 Pin Quick Disconnect
- Compact size: 11mm W x 32mm H
- Fine 2mm beam spot at 400mm distance
- Affordable cost
- Class 2 laser
- NPN output
- M8 4 pin quick disconnect
- Cross-talk prevention for two sensors
- Amplifier built-in
Fine 2mm Beam Spot at 400mm Distance
- Approx. ø2 mm spot size at a distance of 400 mm. Optimal for applications that in which small object detection and high repeat accuracy are required.
Great for High-Speed Production Lines – Response Time: 250 ?s
- The laser sensor provides a high-speed response time of 250 ?s that makes detection in high speed production lines possible.
Outstanding Environmental Resistance
Degree of protection: IP67, Shock resistance: 50 G.
Its integrally molded structure enables all models to conform to IP67 and achieve a shock resistance up to 50 G. It doesn’t break even when wet and can be used in locations where vibrations are generated.
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
