RAMCO TD1-010M8 OPTEX THRUBEAM EDGE SENSOR
Quick Overview
Manufactured By: RAMCO
Manufacturer Part Number: TD1-010M8
IMS Product Code: 1927676
Packaging: Sold Individually
Description:

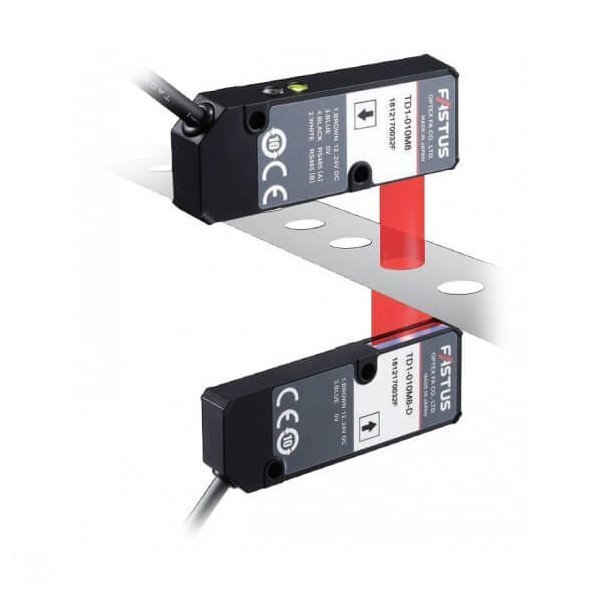

Ramco TD1-010M8 Optex Thrubeam Edge Sensor
Edge Position Measurement Thrubeam Sensors
The TD1 series is ideal for equipment where edge control is required, such as for measurement of the end surfaces of components or sheet materials. The TD1 sensors use a CMOS sensor as the light receiving element, allowing for highly accurate edge position measurement of end surfaces.
Up To 300mm Measurement Range
In direction checking mode, the indicator will flash when the light axis is misaligned, notifying that the alignment should be checked. This makes it easier to check the light axis when installing sensors or during periodic maintenance.
Repeatability: ±5?m – Linearity: ±0.4% of F.S.
Easy Light Axis Alignment
In direction checking mode, the indicator will flash when the light axis is misaligned, notifying that the alignment should be checked. This makes it easier to check the light axis when installing sensors or during periodic maintenance.

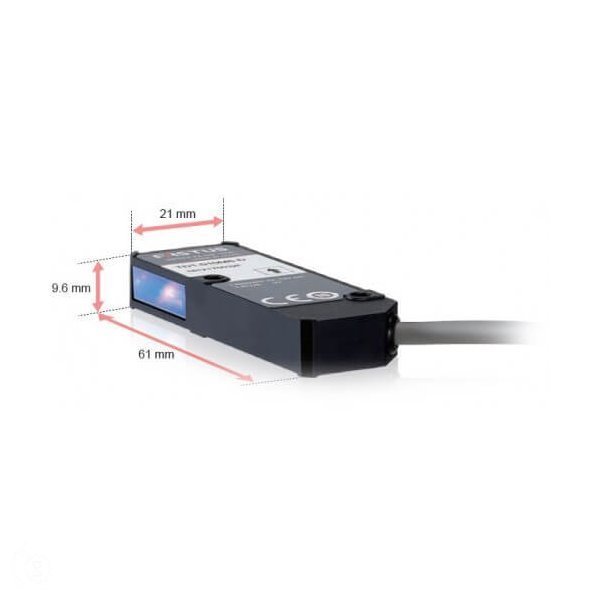

Compact Design
The compact size of the sensor head allows for easy installation even for devices with limited space. This makes it possible to keep equipment as small as possible.
Width/Gap Measurement
The measurement method used in a TD1 series product can be changed to suit the inspection application, such as when measuring the width of small electronic components or the gaps between rollers.
