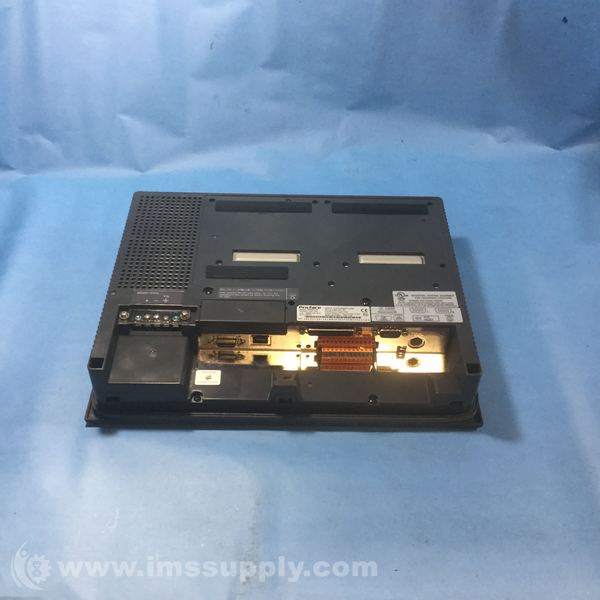

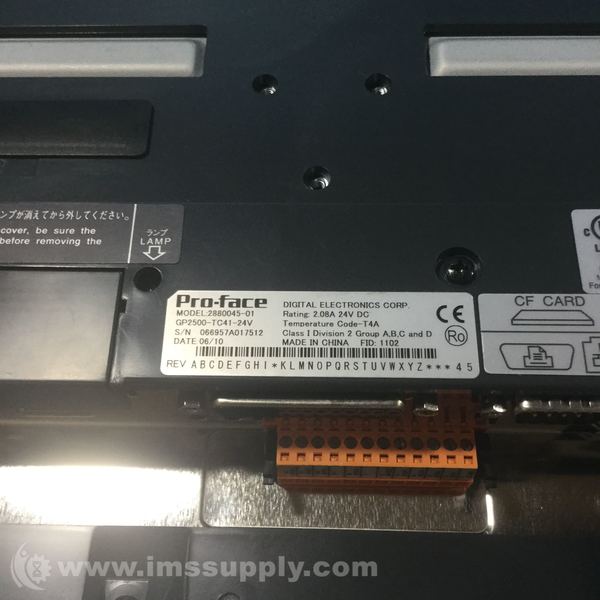

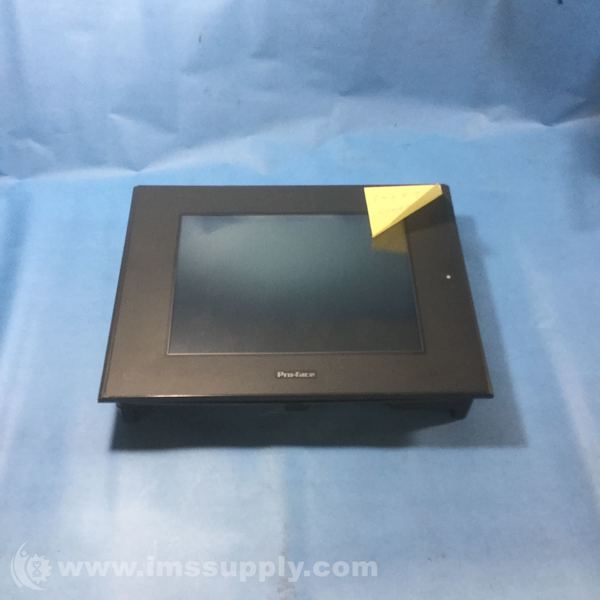

PRO-FACE GP2500-TC41-24V TOUCH SCREEN HMI DISPLAY
Quick Overview
Manufactured By: PRO-FACE
Manufacturer Part Number: GP2500-TC41-24V
IMS Product Code: 1810228
Packaging: Sold Individually
Description:
Proface GP2500-TC41-24V Touch Panel, HMI Display
Specifications:
- Type: TFT Color LCD
- Display Colors: 256 colors (no blink)/ 64 colors (3-speed blink) (software control)*1
- Backlight: CCFL (Service life: more than 50,000 at 24 hr. operation)
- Resolution: 640 × 480 pixels
- Effective Display Area (mm): 211.2(W) × 158.4(H)
- Brightness Control: 4 levels of adjustment available via touch panel
- Character Sizes*2: 8 × 8 dots, 8 × 16 dots, 16 × 16 dots, 32 × 32 dots
- Font Sizes: Width can be expanded 1 to 8 times.
- Height can be expanded 1/2*3, 1 to 8 times.
- Application Memory: Flash Eprom 4MB
- Data Backup Memory: 256KB SRAM - uses lithium battery*4
- Touch Panel Resolution: 32 x 24 keys/ screen - 1 or 2 point touch
