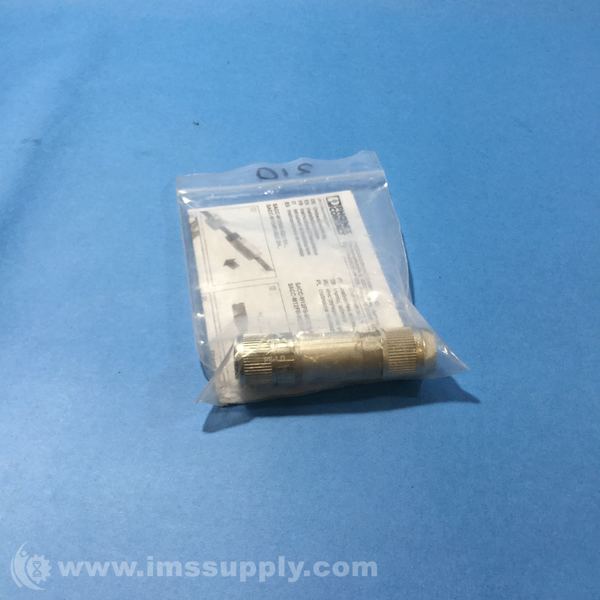

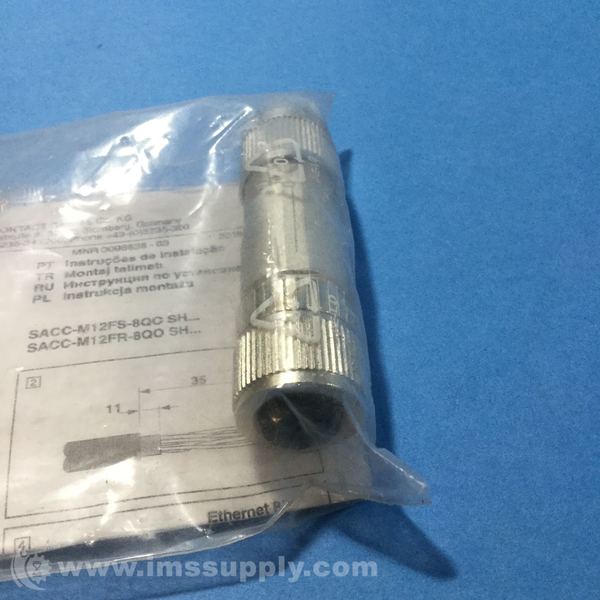

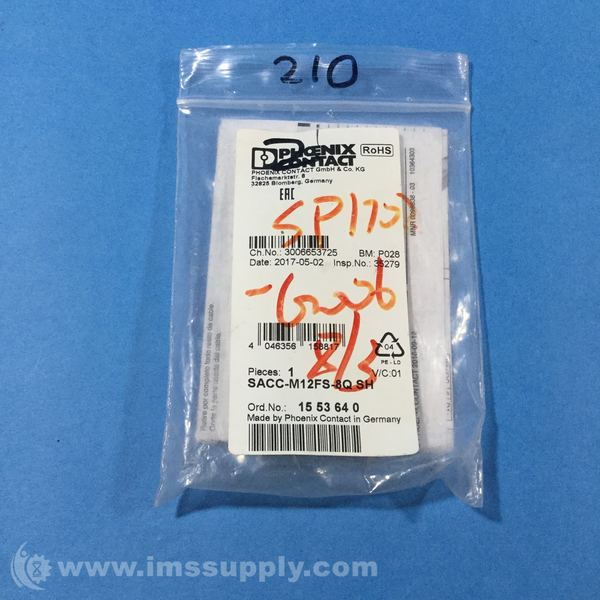

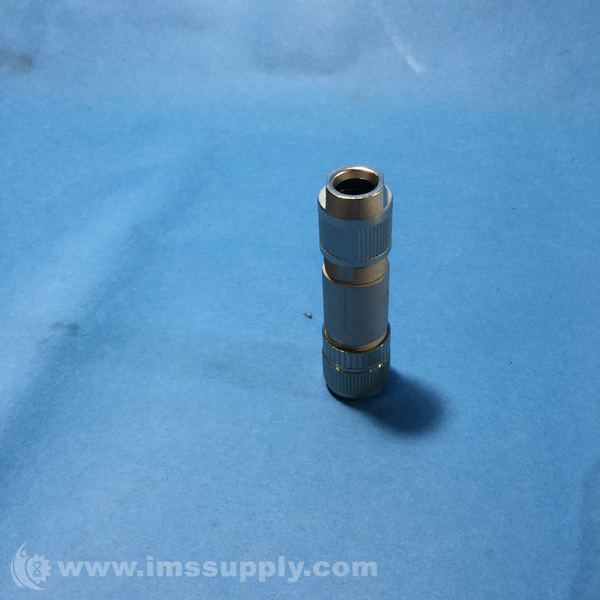

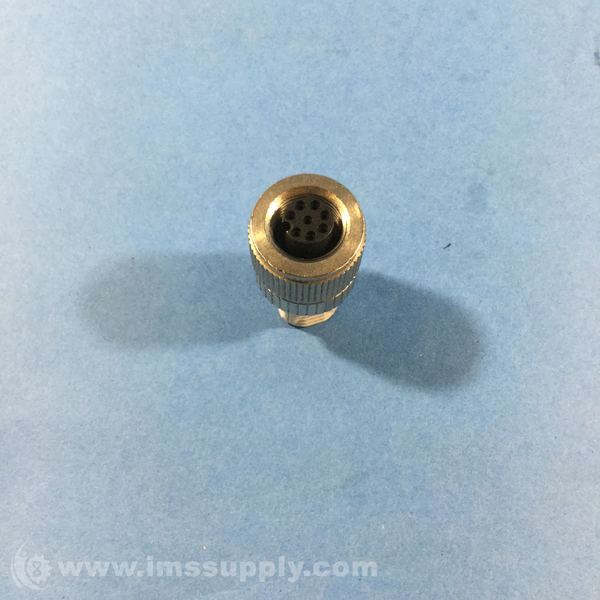

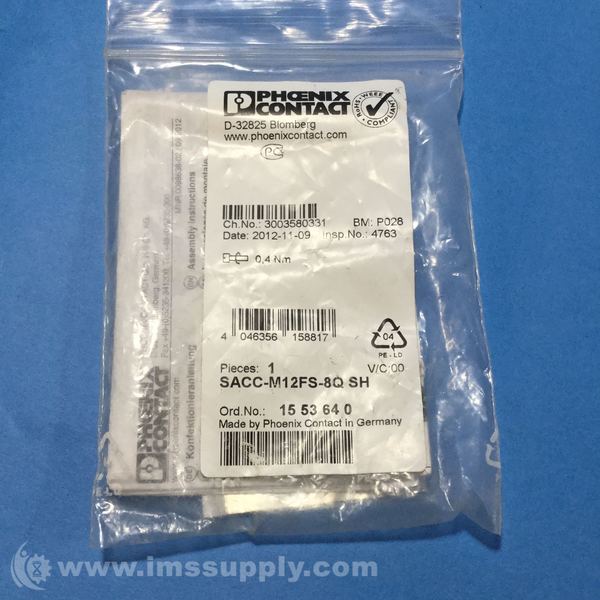

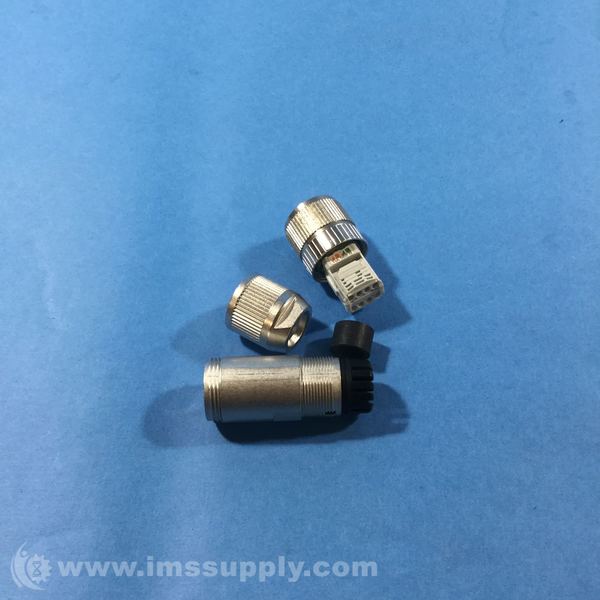

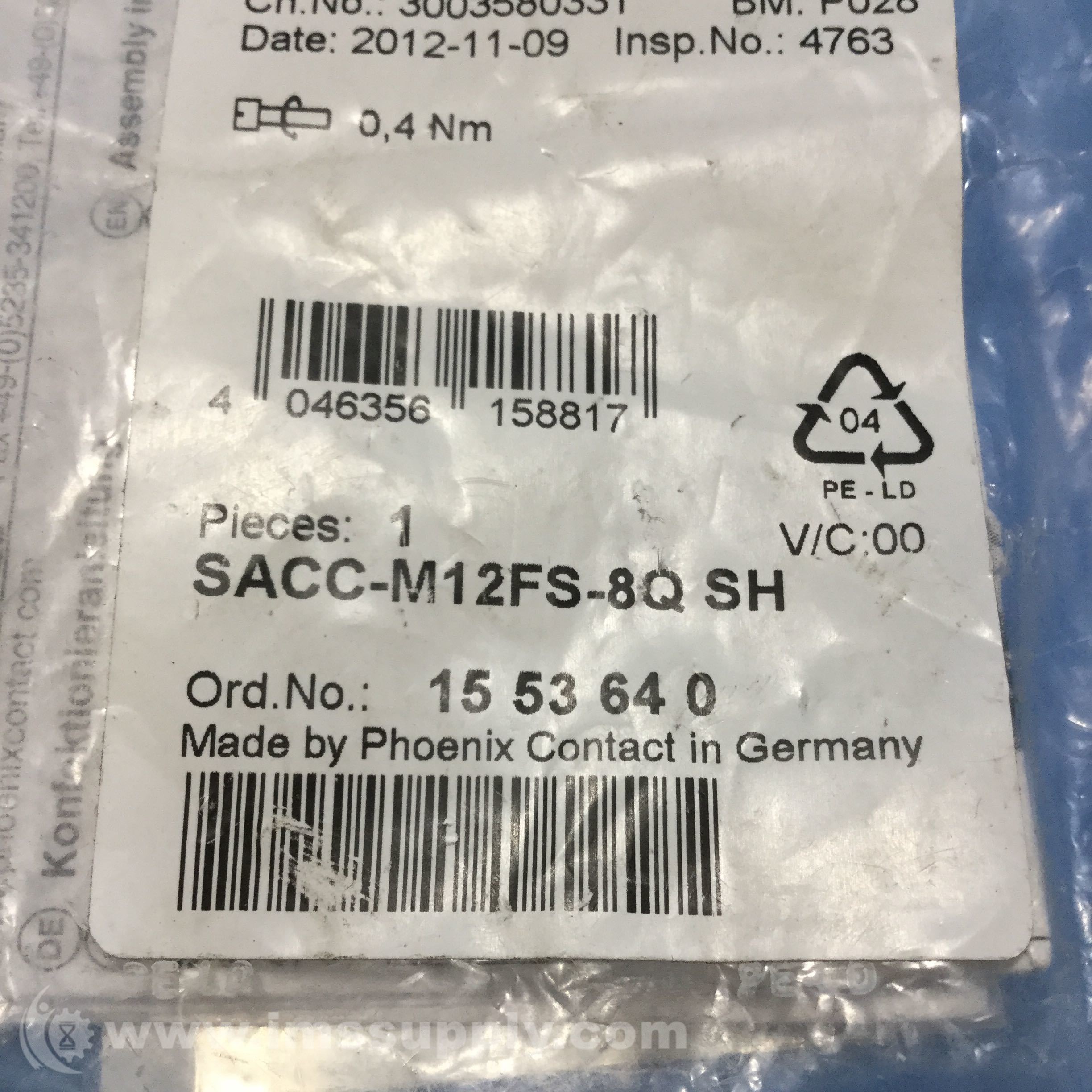

PHOENIX CONTACT SACC-M12FS-8Q SH BUS SYSTEM CONNECTOR
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: SACC-M12FS-8Q SH
IMS Product Code: 1807274
Packaging: Sold Individually
Description:
Phoenix Contact SACC-M12FS-8Q SH Bus System Connector
Specifications:
- Rated current at 40°C: 2 Amp
- Rated voltage:
- 30 V AC
- 30 V DC
- Number of positions: 8
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector according to IEC 61076-2-101
- Signal type/category: Ethernet CAT5 (on the basis of IEC 11801), 1 Gbps
- Status display: No
- Overvoltage category: II
- Degree of pollution: 3
- Connection method: Insulation displacement connection
- Conductor cross section: 0.14 mm² ... 0.34 mm²
- Conductor cross section AWG: 26 ... 22
- Wire diameter incl. insulation: ≤ 1.6 mm
- Frequency of connections between conductors of the same cross section: ≤ 10
- Insertion/withdrawal cycles: ≥ 100
- Torque:
- 0.4 Nm (M12 knurl)
- 0.8 Nm (Connector with coupling sleeve)
- 3 Nm (Pressure nut with coupling sleeve)
