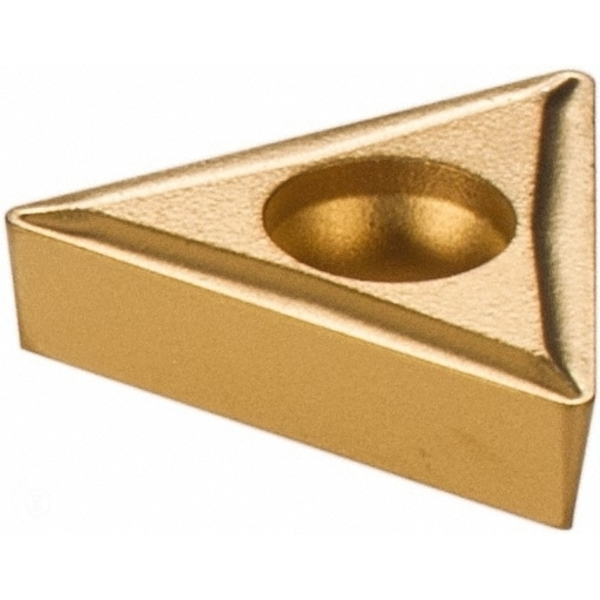

PARLEC T111615TTP INSERT, TRIANGLE, COATED
Starting At: $17.10
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: T111615TTP
IMS Product Code: 1745932
Packaging: Sold Individually
Description:
Material: Carbide
Insert Style: TCMT
Insert Size: 111615
Manufacturer's Grade: TT
Inscribed Circle (Decimal Inch): 0.2500
Thickness (Decimal Inch): 0.0940
Corner Radius (Decimal Inch): 0.0160
Coating: TiN/TiC/TiN
Hole Diameter (Decimal Inch): 0.1080
Rake: Positive
Relief Angle ( ): 7
Included Angle ( ): 60
Chipbreaker: P
Insert Holding Method: Screw
Shape: Triangle
