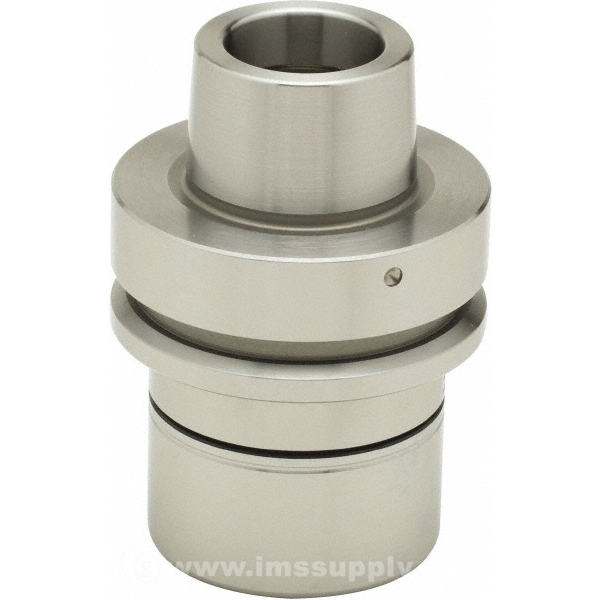

PARLEC H63F-32EROS255 EROS PRECISION CHUCK, HSK63F, 32 X 2.55
Starting At: $367.65
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: H63F-32EROS255
IMS Product Code: 1747039
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ER32
Taper Size: HSK63F
Shank Type: Hollow Taper
Shank Diameter (Inch): 25/32
Projection (Decimal Inch): 2.5500
Through Coolant: Through Coolant
Minimum Collet Capacity (Decimal Inch): 0.0540
Minimum Collet Capacity (mm): 2.00
Maximum Collet Capacity (mm): 20.00
Maximum Collet Capacity (Decimal Inch): 0.7812
Nut Tightening Torque (Ft-Lbs): 125.000
Maximum RPM: 25000
Collet Series: ER32
TIR (Decimal Inch): 0.000040
Balanced to (RPM): 25000
Coolant Type: Through-Spindle
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 30 Days
