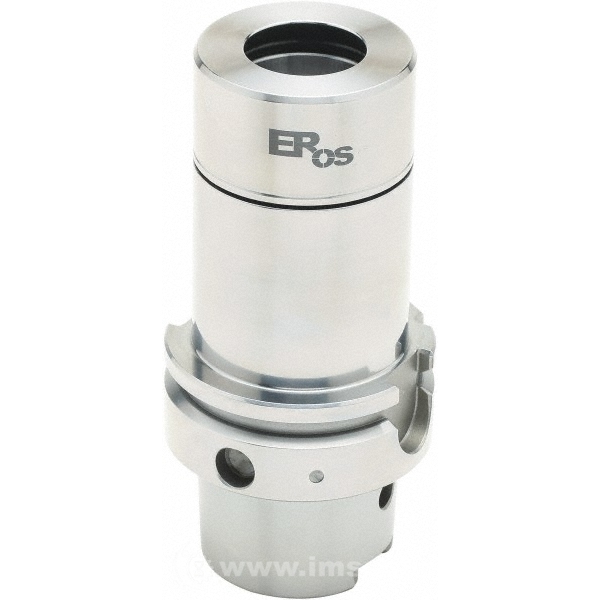

PARLEC H63A-40EROS314 EROS PRECISION CHUCK, HSK63A , 40 X 3.14
Starting At: $440.80
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: H63A-40EROS314
IMS Product Code: 1745766
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ER40
Taper Size: HSK63A
Shank Type: Hollow Taper
Shank Diameter (Inch): 1
Projection (mm): 80.00
Projection (Decimal Inch): 3.1500
Through Coolant: Through Coolant
Minimum Collet Capacity (Decimal Inch): 0.0860
Minimum Collet Capacity (mm): 2.00
Maximum Collet Capacity (mm): 30.00
Maximum Collet Capacity (Decimal Inch): 1.0000
Nut Tightening Torque (Ft-Lbs): 162.000
Maximum RPM: 25000
Collet Series: ER40
TIR (Decimal Inch): 0.000040
Balanced to (RPM): 25000
Coolant Type: Through-Spindle
