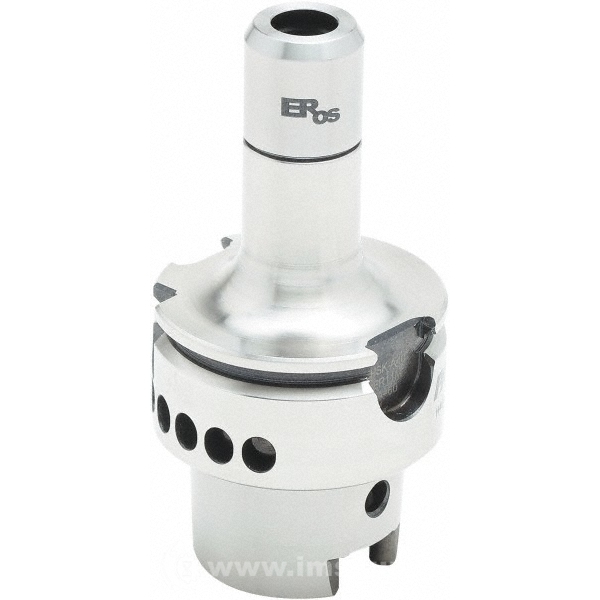

PARLEC H63A-11EROSM511 EROS PRECISION CHUCK, HSK63A, 11M X 5.11
Starting At: $440.80
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: H63A-11EROSM511
IMS Product Code: 1745765
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ER11
Taper Size: HSK63A
Shank Type: Hollow Taper
Shank Diameter (Inch): 1/4
Projection (Decimal Inch): 5.1200
Through Coolant: Through Coolant
Minimum Collet Capacity (Decimal Inch): 0.0428
Minimum Collet Capacity (mm): 0.50
Maximum Collet Capacity (mm): 7.00
Maximum Collet Capacity (Decimal Inch): 0.2500
Nut Tightening Torque (Ft-Lbs): 22.000
Maximum RPM: 25000
Collet Series: ER11
TIR (Decimal Inch): 0.000040
Balanced to (RPM): 25000
Coolant Type: Through-Spindle
