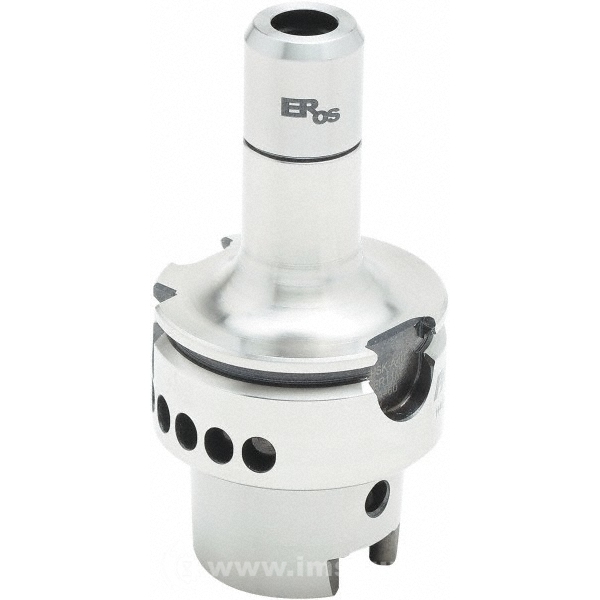

PARLEC H40E-16EROSM394 EROS PREC CHUCK, HSK 40E, 16M X 3.94
Starting At: $386.65
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: H40E-16EROSM394
IMS Product Code: 1747026
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ER16
Taper Size: HSK40E
Shank Type: Hollow Taper
Shank Diameter (Inch): 13/32
Projection (Decimal Inch): 3.9400
Through Coolant: Through Coolant
Minimum Collet Capacity (Decimal Inch): 0.0400
Minimum Collet Capacity (mm): 0.50
Maximum Collet Capacity (mm): 10.00
Maximum Collet Capacity (Decimal Inch): 0.4060
Nut Tightening Torque (Ft-Lbs): 52.000
Maximum RPM: 25000
Collet Series: ER16
TIR (Decimal Inch): 0.000040
Balanced to (RPM): 25000
Coolant Type: Through-Spindle
