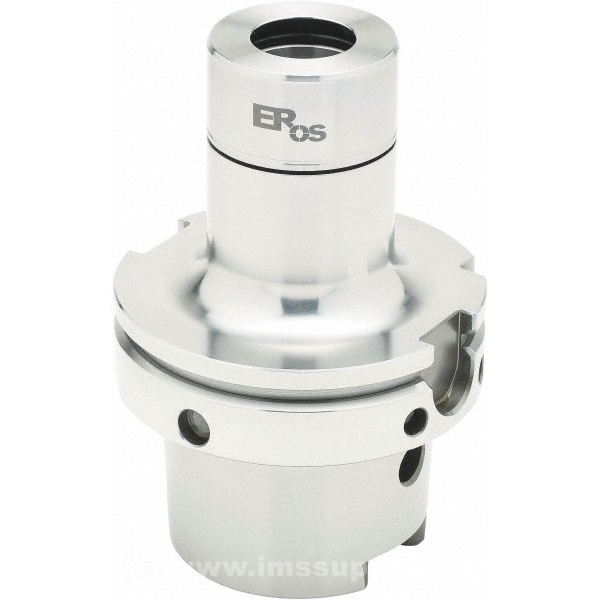

PARLEC H100A-32EROS630 EROS PRECISION CHUCK, HSK100A, 32 X 6.30
Starting At: $563.35
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: H100A-32EROS630
IMS Product Code: 1747016
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ER32
Taper Size: HSK100A
Shank Type: Hollow Taper
Shank Diameter (Inch): 25/32
Projection (Decimal Inch): 6.3000
Through Coolant: Through Coolant
Minimum Collet Capacity (Decimal Inch): 0.0540
Minimum Collet Capacity (mm): 2.00
Maximum Collet Capacity (mm): 20.00
Maximum Collet Capacity (Decimal Inch): 0.7812
Nut Tightening Torque (Ft-Lbs): 125.000
Maximum RPM: 20000
Collet Series: ER32
TIR (Decimal Inch): 0.000040
Balanced to (RPM): 20000
Coolant Type: Through-Spindle
