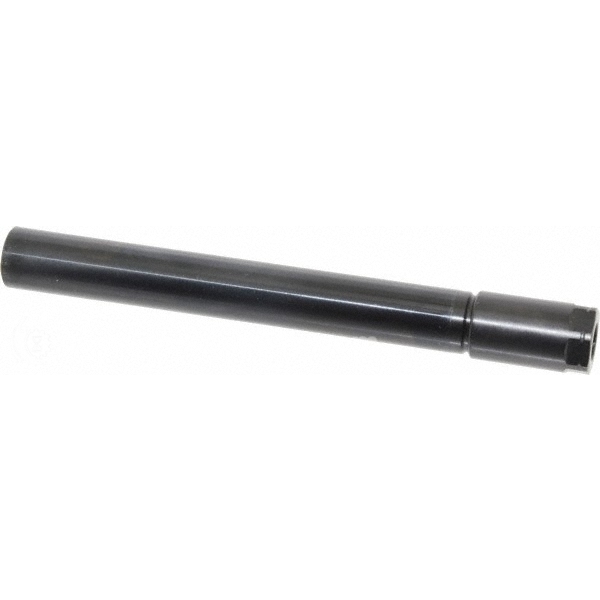

PARLEC EXT750 TOOL EXTENSION
Starting At: $168.15
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: EXT750
IMS Product Code: 1743303
Packaging: Sold Individually
Description:
Collet System: Double Angle
Collet Series: DA200
Shank Type: Straight Shank
Shank Diameter (Inch): 3/4
Projection (Decimal Inch): 1.6860
Through Coolant: Through Coolant
Minimum Collet Capacity (Inch): 1/32
Minimum Collet Capacity (Decimal Inch): 0.0313
Minimum Collet Capacity (mm): 0.79
Maximum Collet Capacity (mm): 9.92
Maximum Collet Capacity (Inch): 25/64
Maximum Collet Capacity (Decimal Inch): 0.3906
Overall Length (Decimal Inch): 7.1860
Shank Length (Decimal Inch): 5.5000
Hex Diameter (Decimal Inch): 0.8120
TIR (Decimal Inch): 0.0004
Coolant Type: Through-Spindle
Collet Nut Diameter (Decimal Inch): 0.8100
