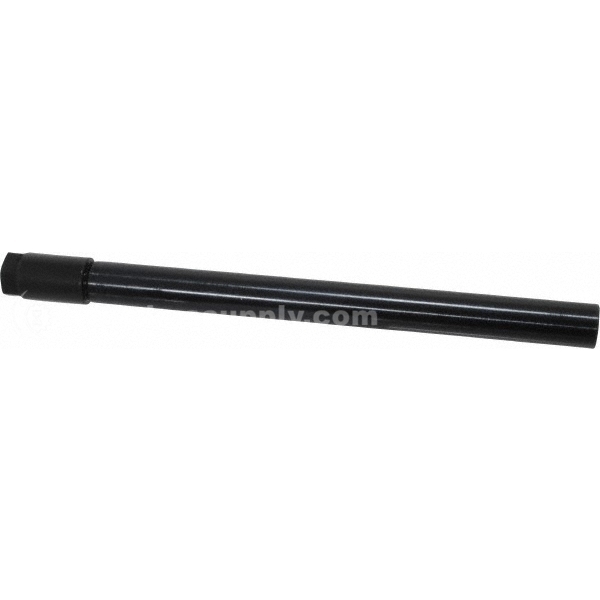

PARLEC EXT500 TOOL EXTENSION
Starting At: $148.20
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: EXT500
IMS Product Code: 1743097
Packaging: Sold Individually
Description:
Collet System: Double Angle
Collet Series: DA300
Shank Type: Straight Shank
Shank Diameter (Inch): 1/2
Projection (Decimal Inch): 1.3220
Through Coolant: Through Coolant
Minimum Collet Capacity (Inch): 1/32
Minimum Collet Capacity (Decimal Inch): 0.0313
Minimum Collet Capacity (mm): 0.79
Maximum Collet Capacity (mm): 6.35
Maximum Collet Capacity (Inch): 1/4
Maximum Collet Capacity (Decimal Inch): 0.2500
Overall Length (Decimal Inch): 6.8220
Shank Length (Decimal Inch): 5.5000
Hex Diameter (Decimal Inch): 0.5620
TIR (Decimal Inch): 0.0004
Coolant Type: Through-Spindle
Collet Nut Diameter (Decimal Inch): 0.5620
