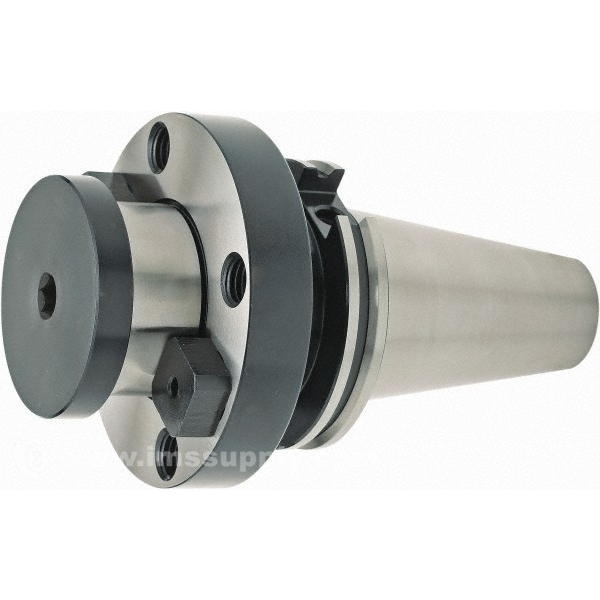

PARLEC C50F-25SM2 SM HOLDER C50 SIMULFIT 2 1/2" X 2.40"
Starting At: $494.00
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: C50F-25SM2
IMS Product Code: 1742550
Packaging: Sold Individually
Description:
Shank Type: Dual Contact Taper
Taper Size: CAT50
Pilot Diameter (mm): 63.50
Pilot Diameter (Decimal Inch): 2.5000
Projection Flange to Nose End (mm): 60.96
Projection Flange to Nose End (Decimal Inch): 2.4000
Through Coolant: Yes
Nose Diameter (mm): 123.95
Nose Diameter (Decimal Inch): 4.8800
Balanced to (RPM): 8000
TIR (mm): 0.005
Coolant Type: Through-Spindle
