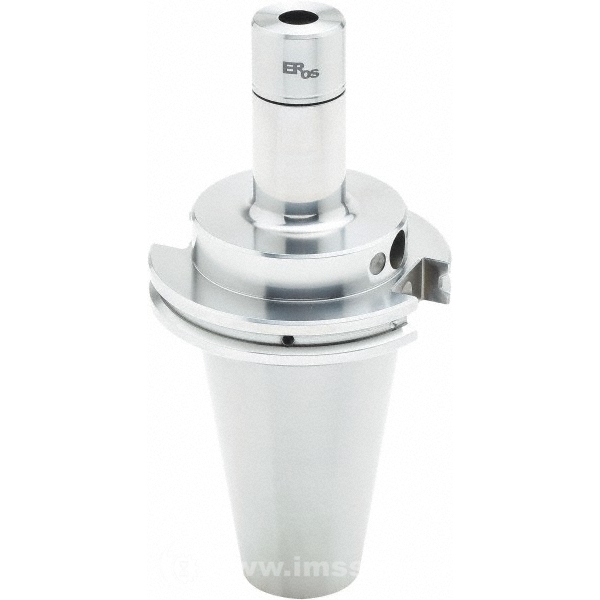

PARLEC C50BC-16EROS600 EROS PRECISION CHUCK, CAT 50 AD/B, 16 X
Starting At: $661.20
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: C50BC-16EROS600
IMS Product Code: 1746036
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ERos16
Taper Size: CAT50
Shank Type: Taper Shank
Shank Diameter (Inch): 13/32
Projection (Decimal Inch): 6.0000
Through Coolant: Through Coolant
Minimum Collet Capacity (Decimal Inch): 0.0400
Minimum Collet Capacity (mm): 0.50
Maximum Collet Capacity (mm): 10.00
Maximum Collet Capacity (Decimal Inch): 0.4060
Nut Tightening Torque (Ft-Lbs): 52.000
Maximum RPM: 20000
Collet Series: ER16
TIR (Decimal Inch): 0.000040
Balanced to (RPM): 20000
Coolant Type: Through-Spindle & DIN Flange
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 30 Days
