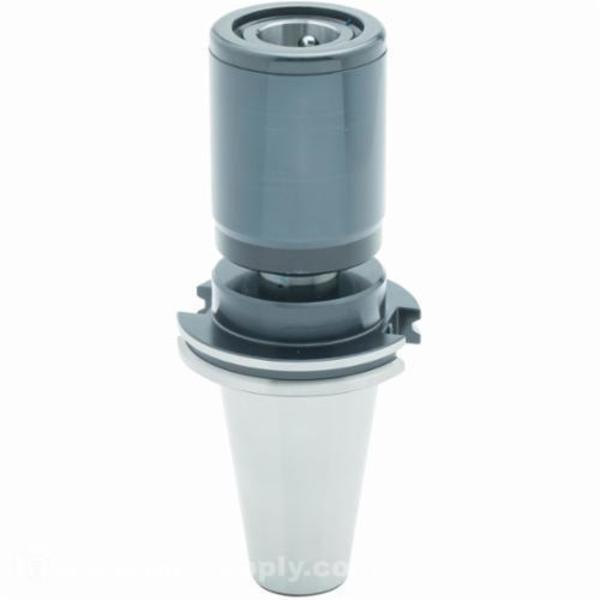

PARLEC C50-70TA5C TAPPING CHUCK AND HOLDER, NUMERTAP SYSTEM 700
Starting At: $1,557.05
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: C50-70TA5C
IMS Product Code: 1811912
Packaging: Sold Individually
Description:
Parlec C50-70TA5C Tapping Chuck and Holder, Numertap System 700, Coolant, CAT50 X 5.46
Specifications:
- Tapping Style: Tension & Compression
- Shank Type: Taper Shank
- Taper Size: CAT50
- Minimum Tap Capacity (mm): M5 (Ferrous & Non-Ferrous)
- Minimum Tap Capacity (Inch): #10 (Ferrous & Non Ferrous)
- Maximum Tap Capacity (Inch): 1 (Non Ferrous); 3/4 (Ferrous)
- Maximum Tap Capacity (mm): M20 (Ferrous); M25 (Non-Ferrous)
- Projection (Decimal Inch): 5.4600
- Quick Change: Yes
- Nose Diameter (Decimal Inch): 2.7500
- Tension (Decimal Inch): 0.5600
- Compression (Decimal Inch): 0.00 to 0.25
- Through Coolant: Yes
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 10 to 14 Days
