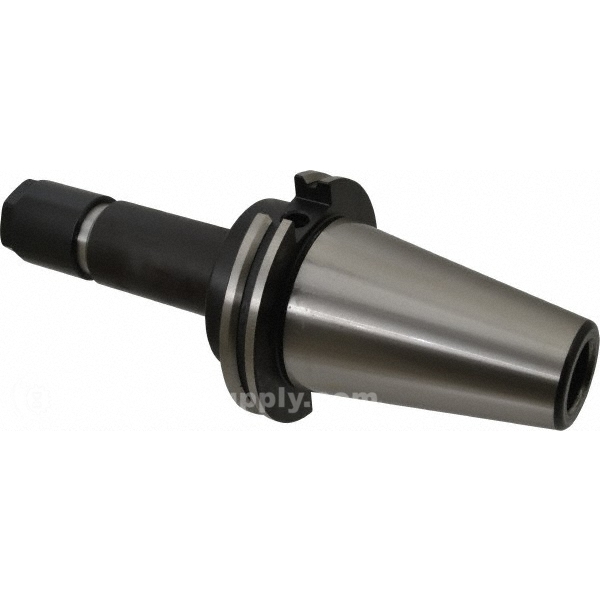

PARLEC C50-18DC6 DA180 CHK X 6.15" CAT50
Starting At: $281.20
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: C50-18DC6
IMS Product Code: 1740788
Packaging: Sold Individually
Description:
Collet System: Double Angle
Collet Series: DA180
Taper Size: CAT50
Shank Type: Taper Shank
Projection (Decimal Inch): 6.1500
Minimum Collet Capacity (Inch): 1/32
Minimum Collet Capacity (Decimal Inch): 0.0310
Minimum Collet Capacity (mm): 0.79
Maximum Collet Capacity (mm): 19.05
Maximum Collet Capacity (Inch): 3/4
Maximum Collet Capacity (Decimal Inch): 0.7500
Overall Length (Decimal Inch): 10.1500
Nose Diameter (Decimal Inch): 1.4400
TIR (Decimal Inch): 0.0004
Coolant Type: Through-Spindle
