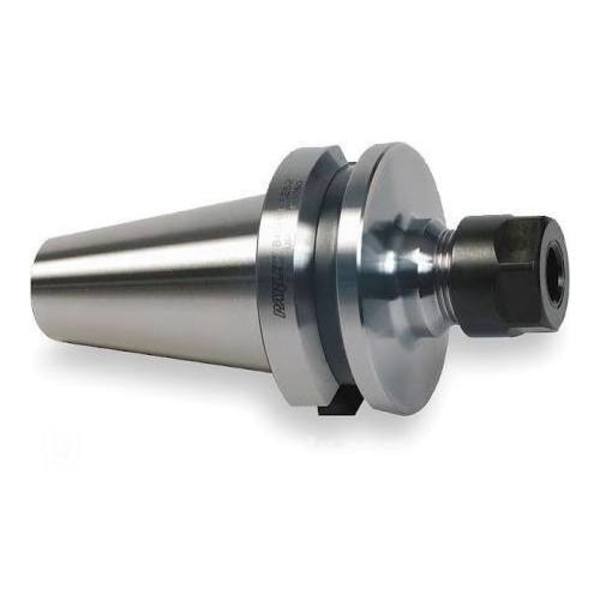

PARLEC C50-16ERF1000 ER 16 CHK FLUSH X 10.00" BALANCED CAT50
Starting At: $402.80
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: C50-16ERF1000
IMS Product Code: 1740782
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ER16
Taper Size: CAT50
Shank Type: Taper Shank
Projection (Decimal Inch): 10.0000
Minimum Collet Capacity (Decimal Inch): 0.0197
Minimum Collet Capacity (mm): 0.50
Maximum Collet Capacity (mm): 10.00
Maximum Collet Capacity (Decimal Inch): 0.3937
Overall Length (Decimal Inch): 14.0000
Actuator Type: Wrench
Type: ER Coolant Collet
Nose Diameter (Decimal Inch): 1.1100
Balanced to (RPM): 20000
TIR (Decimal Inch): 0.0002
Coolant Type: Through-Spindle
Collet Nut Diameter (Decimal Inch): 1.1100
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 30 Days
