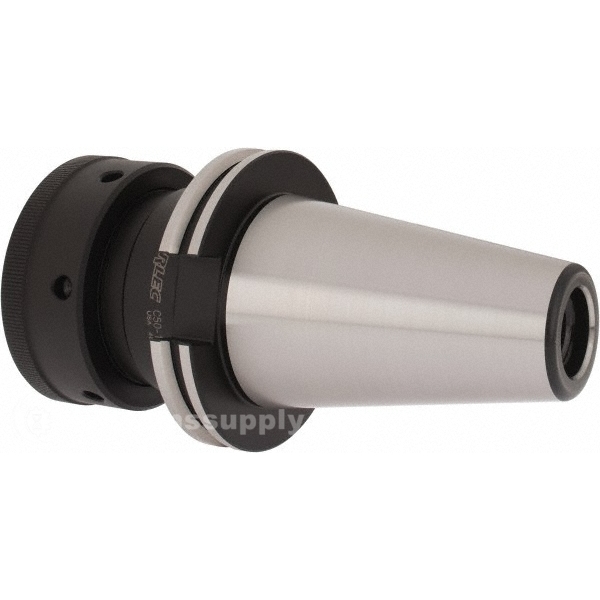

PARLEC C50-15SC4 PG150 CHK X 3.50" CAT50
Starting At: $349.60
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: C50-15SC4
IMS Product Code: 1740775
Packaging: Sold Individually
Description:
Collet System: Single Angle
Collet Series: TG/PG 150
Taper Size: CAT50
Shank Type: Taper Shank
Projection (Decimal Inch): 3.5000
Minimum Collet Capacity (Inch): 31/64
Minimum Collet Capacity (Decimal Inch): 0.4840
Minimum Collet Capacity (mm): 12.29
Maximum Collet Capacity (mm): 38.10
Maximum Collet Capacity (Inch): 1-1/2
Maximum Collet Capacity (Decimal Inch): 1.5000
Overall Length (Decimal Inch): 7.5000
Nose Diameter (Decimal Inch): 3.4300
TIR (Decimal Inch): 0.0002
Coolant Type: Through-Spindle
