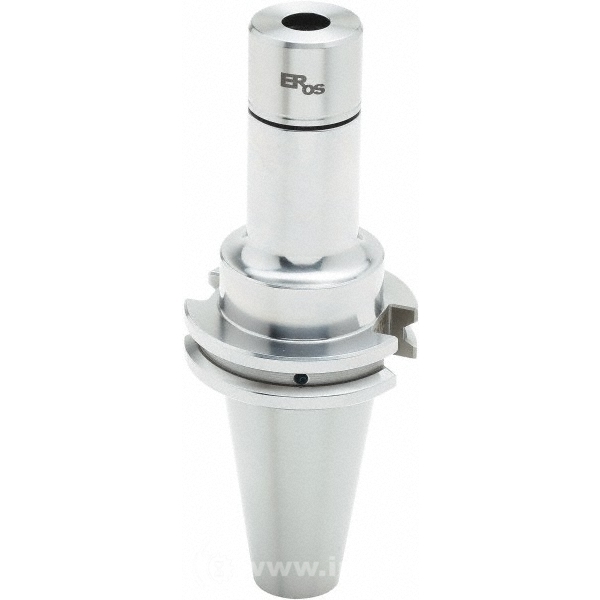

PARLEC C40BC-40EROS400 EROS PRECISION CHUCK, CAT 40 AD/B, 40 X
Starting At: $416.10
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: C40BC-40EROS400
IMS Product Code: 1746034
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ERos40
Taper Size: CAT40
Shank Type: Taper Shank
Shank Diameter (Inch): 1
Projection (Decimal Inch): 4.0000
Through Coolant: Through Coolant
Minimum Collet Capacity (Decimal Inch): 0.0860
Minimum Collet Capacity (mm): 2.00
Maximum Collet Capacity (mm): 30.00
Maximum Collet Capacity (Decimal Inch): 1.0000
Nut Tightening Torque (Ft-Lbs): 162.000
Maximum RPM: 15000
Collet Series: ER40
TIR (Decimal Inch): 0.000040
Balanced to (RPM): 25000
Coolant Type: Through-Spindle & DIN Flange
